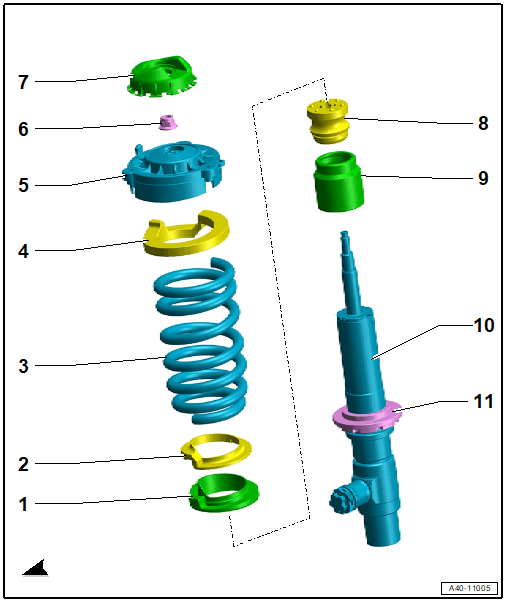

Overview - Suspension Strut Coil Spring, RS Competition
WARNING: This page is about a different variant/trim than selected.
- Lower Spring Plate
- No replacement part
- Spring Washer
- No replacement part
- Coil Spring
- Spring Support
- Strut Mount
- Installation position. Refer to Figure.
- Nut
- 50 Nm
- Replace after removing
- Cap
- Can only be installed in one position
- Stop Buffer
- Protective Cover
- Shock Absorber
- Because of different shock absorber valve systems, only install new shock absorbers from the same manufacturer on both axles, if possible.
- Removing and installing. Refer to SUSPENSION STRUT, SERVICING .
- Removing and installing the suspension strut. Refer to SUSPENSION STRUT, REMOVING AND INSTALLING, RS COMPETITION .
- Note the installation position. Refer to Installing .
- Adjusting Nut
- Adjusting. Refer to the appropriate Service Information.
