Rear Water Drain Hoses, Removing And Installing, A5: Removing

-- Move the front backrest all the way toward the rear.

-- Remove the headliner and place on the seats. Refer to HEADLINER, REMOVING AND INSTALLING .

-- Remove the clutch rod -2- from the mount -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the mount clockwise -arrow A- and remove -arrow B-.

-- Free up the water drain hose from the clips -1-.

-- Remove the rear wheel housing liner from the corresponding side. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

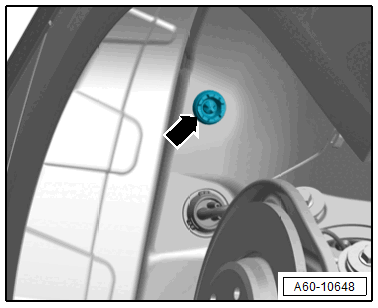

-- Disengage the grommet -arrow- from the rear wheel housing.

-- Remove the water drain hose.
