Wind Deflector, Removing And Installing, A5: Removing
WARNING: This page is about a different variant/trim than selected.

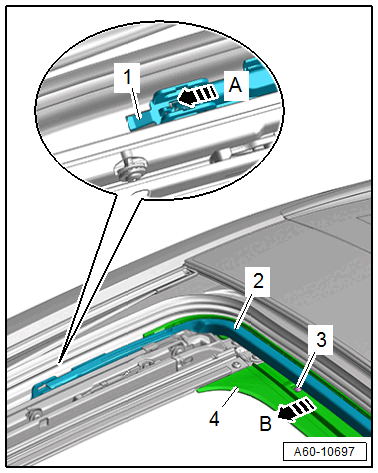

-- Move the glass panel completely toward the rear.
-- Release the left and right retainer -1- upward using a small screwdriver.
-- Push the left and right wind deflector -2- toward the rear -arrow A- and disengage.
-- Loosen the bolts -3-.
-- Remove the fabric deflector -4- toward the rear and upward from the sunroof frame -arrow B-.
-- Remove the wind deflector -2- with the fabric deflector -4-.
