Sunroof Control Module -J245-, REMOVING AND INSTALLING, A5: Removing
WARNING: This page is about a different variant/trim than selected.
-- Switch off the ignition.
-- Remove the left and right sun visors. Refer to SUN VISOR, REMOVING AND INSTALLING .
-- Remove the sun visor center support. Refer to SUN VISOR CENTER SUPPORT, REMOVING AND INSTALLING .
-- Remove the front interior lamp/reading lamp. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

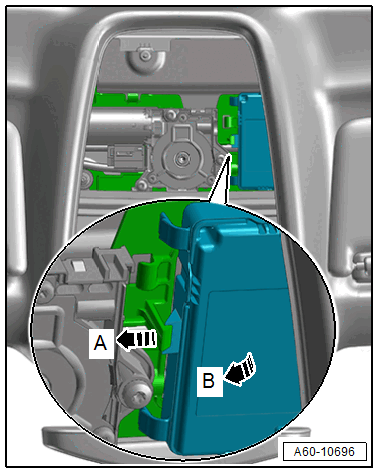

-- Release the tab -arrow A- and remove the Power Sunroof Control Module -J245- to the left side of the vehicle from the bracket -arrow B-.
-- Disconnect the connectors -1, 3 and 4- on the Power Sunroof Control Module -J245- -item 2-.
