Overview - Wind Deflector, A5

WARNING: This page is about a different variant/trim than selected.

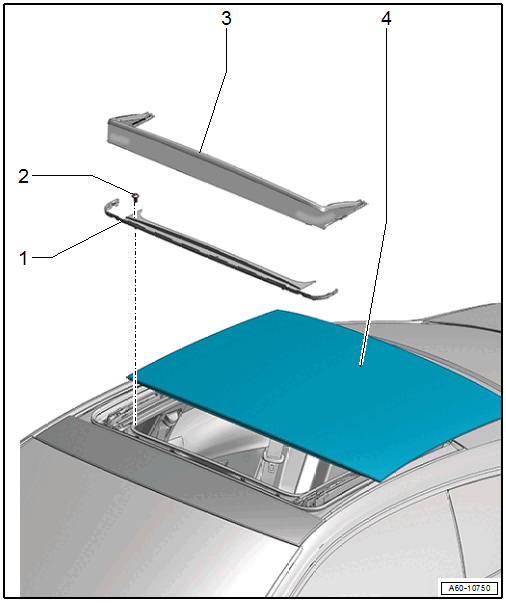

Fig 1: Exploded View Of Wind Deflector
GWWA60-10750Courtesy of AUDI OF AMERICA, LLC
  1. Wind Deflector
    • Clipped in the wind deflector
  2. Bolt
    • Quantity: 3
    • thread cutting
    • Position and install by hand
    • 3 Nm
  3. Wind Deflector
  4. Glass Panel
