Overview - Sliding and Tilting Mechanism

WARNING: This page is about a different variant/trim than selected.

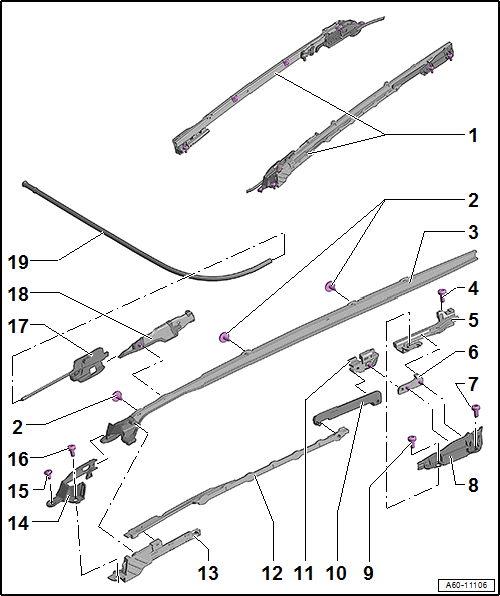

Fig 1: Exploded View Of Sliding and Tilting Mechanism

Courtesy of AUDI OF AMERICA, LLC

Slide and Tilting Mechanism
- Removing and Installing. Refer to SLIDING AND TILTING MECHANISM, REMOVING AND INSTALLING .
Bolt
- Tightening specification OVERVIEW - SLIDING SUNROOF, A5.
Glass Panel Tilting Rail
Bolt
- Tightening specification OVERVIEW - SLIDING SUNROOF, A5.
Slotted Guide Rail Hoist
- Front interior
Lever
Bolt
- Tightening specification OVERVIEW - SLIDING SUNROOF, A5.
Slotted Guide Rail Hoist
- Front rear
Bolt
- Tightening specification OVERVIEW - SLIDING SUNROOF, A5.
Connecting Rod
Slider
Control Rod
Slotted Guide Rail Hoist
- Rear interior
Slotted Guide Rail Hoist
- rear outer
Bolt
- Tightening specification OVERVIEW - SLIDING SUNROOF, A5.
Bolt
- Tightening specification OVERVIEW - SLIDING SUNROOF, A5.
Glass Panel Driver
- Cable, Removing and Installing. Refer to SUNROOF OPERATION CABLE, REMOVING AND INSTALLING .
Pivot arm
Drain Pipe
- Removing and Installing. Refer to DRAIN PIPE, REMOVING AND INSTALLING .
