Glass Panel, Adjusting, A5

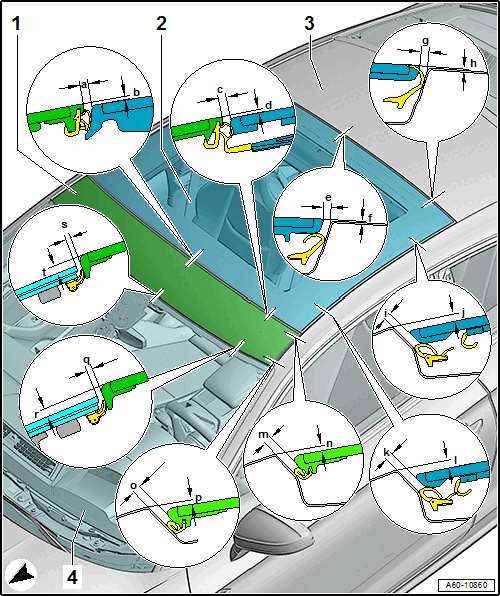

Adjustment Dimensions

Courtesy of AUDI OF AMERICA, LLC

1. Glass Trim
   • A5 Coupe:

     Dimension -a- = 3 mm

     Dimension -b- = 1.2 mm

     Dimension -c- = 3 mm

     Dimension -d- = 1 mm

     Dimension -m- = 3.2 mm

     Dimension -n- = 2.1 mm

     Dimension -o- = 3.1 mm

     Dimension -p- = 1.9 mm

     Dimension -q- = 2 mm

     Dimension -r- = 3.4 mm

     Dimension -s- = 2 mm

     Dimension -t- = 3.5 mm

Dimension -m- = 3.2 mm

Dimension -n- = 2.1 mm

Dimension -o- = 3.1 mm

Dimension -p- = 1.9 mm

Dimension -q- = 2 mm

Dimension -r- = 3.4 mm

Dimension -s- = 2 mm

Dimension -t- = 3.5 mm

• A5 Sportback:

  Dimension -a- = 3 mm

  Dimension -b- = 1.2 mm

  Dimension -c- = 3 mm

  Dimension -d- = 1.2 mm

• Glass Panel

  Dimension -a- = 3 mm

  Dimension -b- = 1.2 mm

  Dimension -c- = 3 mm

  Dimension -d- = 1 mm

  Dimension -e- = 3.2 mm

  Dimension -f- = 0.6 mm

  Dimension -g- = 3.2 mm

  Dimension -h- = 0.6 mm

  Dimension -i- = 3.1 mm

  Dimension -j- = 2.7 mm

  Dimension -k- = 3.1 mm

  Dimension -l- = 3.4 mm

  • A5 Sportback:

  Dimension -a- = 3 mm

  Dimension -b- = 1.2 mm

  Dimension -c- = 3 mm

  Dimension -d- = 1.2 mm

  Dimension -e- = 3.1 mm

  Dimension -f- = 0.6 mm

  Dimension -g- = 3.1 mm

  Dimension -h- = 0.5 mm

  Dimension -i- = 3.1 mm

  Dimension -j- = 2.9

  Dimension -k- = 3.1

  Dimension -l- = 3.1

• A5 Coupe:

  Dimension -m- = 3.2 mm

  Dimension -n- = 1.9 mm

  Dimension -o- = 3.2 mm

  Dimension -p- = 1.7 mm

  Dimension -q- = 2 mm

  Dimension -r- = 3 mm

  Dimension -s- = 2 mm

  Dimension -t- = 3.1 mm

• Body
• Windshield

Height Adjustment

• To achieve the best possible exterior optical characteristics, make sure that the adjustment on left and right sides is performed as evenly (symmetrically) as possible.

-- Check the glass panel adjustment using a depth gauge, for example. Refer to GLASS PANEL, ADJUSTING, A5 .

-- Close the sliding sunroof.

-- To adjust the glass panel -1-, reach through the openings in the side rubber trim on the glass panel to loosen the screws -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Adjust the glass panel -1- in the front area and tighten the front bolts.

-- Adjust the glass panel -1- in the rear area and tighten the rear bolts.

-- Then tighten the bolts in the center.

-- Perform an adaptation. Refer to Sunroof Motor -V1-, PROGRAMMING .

Tightening Specifications

• Refer to OVERVIEW - SLIDING SUNROOF, A5
