Latch Release Cable, Removing And Installing, RHD, (Not For North AMERICA): Installing

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal while noting the following:

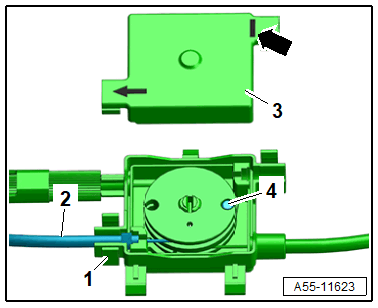

-- Engage the release cable nipple -4- in the roller of the coupling -1- and push the release cable -2- in the support bracket.

Courtesy of AUDI OF AMERICA, LLC

-- Position the housing cover -3- so that the printed "line" -arrow- points toward the free coupling connection.

-- To release the latches evenly, adjust the release cable at the thumbwheel.

Install in the reverse order of removal while noting the following:

-- Engage the release cable nipple -4- in the roller of the coupling -1- and push the release cable -2- in the support bracket.

Courtesy of AUDI OF AMERICA, LLC

-- Position the housing cover -3- so that the printed "line" -arrow- points toward the free coupling connection.

-- To release the latches evenly, adjust the release cable at the thumbwheel.
