Washer Nozzles, Removing And Installing: Installing

WARNING: This page is about a different variant/trim than selected.

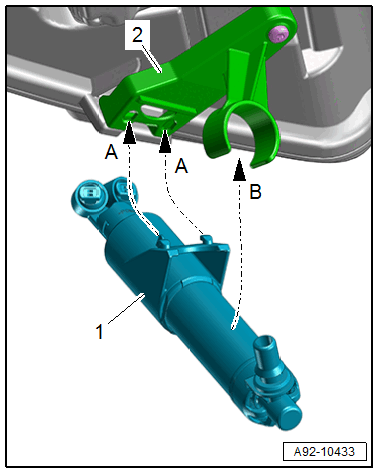

GWWA92-10433Courtesy of AUDI

Install in the reverse order of removal while noting the following:

-- Guide the retaining pin into the mounts on the bracket -2- in the direction of -A arrows-, then press the washer nozzle -1- into the mount on the bracket in the direction of -arrow B-.
