Rear Axle

Rear and Front Lower Transverse Link:

-- Check the relative movement between the wheel bearing housing and both transverse links.

-- Check all front lower transverse link bonded rubber bushings -2- for play.

-- Check the bonded rubber bushings -arrows- of all transverse links for play.

-- Check the stabilizer bar bearing -arrow- for damage.

Rear and Front Upper Transverse Link:

-- Check all front upper transverse link bonded rubber bushings -3- for play.

-- Check all rear upper transverse link bonded rubber bushings -2- for play.

Tie Rod:

-- Check for play on the tie rod -2- bonded rubber bushings.

Courtesy of AUDI OF AMERICA, LLC

Coupling Rod and Stabilizer Bar:

-- Check the coupling rod -2- for play.

Courtesy of AUDI OF AMERICA, LLC

-- Check the stabilizer bar bearing -arrows- for damages.

Courtesy of AUDI OF AMERICA, LLC

Drive Axle:

Only applies to vehicles with AWD.

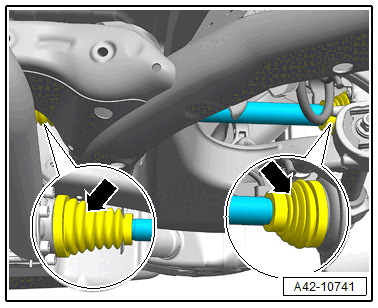

-- Check the drive axle ball joint boots -arrows- for damage and proper seating.

Courtesy of AUDI OF AMERICA, LLC

-- Repeat the component checks on the opposite side of the vehicle.

-- If a defect was found when inspecting the specified components, replace the respective component.
