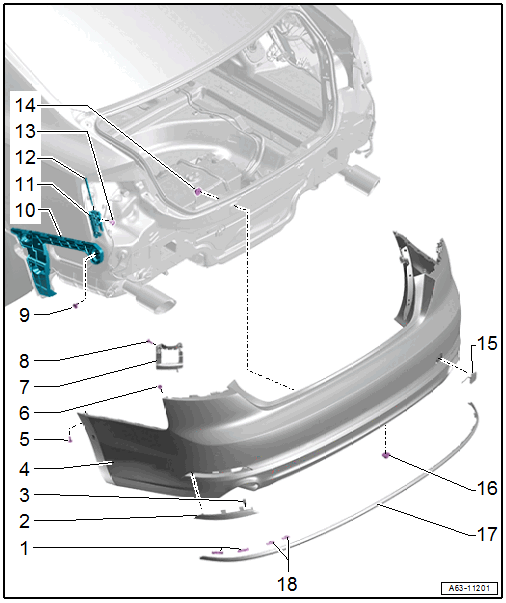

Overview - Bumper Cover, A5 Before Product Improvement
WARNING: This page is about a different variant/trim than selected.
CAUTION:
There is a risk of explosions and fatal injuries due to damaged natural gas tanks.
- The natural gas tank must be checked for damage if components in the rear side or rear area are removed due to damage, such as the bumper cover, rear lid, underbody trim panels, longitudinal members, rear lid end piece, etc.
- Check for damage on fuel tanks. Refer to FUEL TANK .
- Clips
- Quantity: 4
- Rear Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING, A4 AND A5 BEFORE PRODUCT IMPROVEMENT .
- Spring
- For rear reflector
- Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Bolt
- 2 Nm
- Mount
- for lane change assistance control module
- Overview. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Bolt
- Quantity: 3
- Tightening specification. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Bolt
- Quantity: 3
- Tightening specification Refer to OVERVIEW - BUMPER COVER MOUNT .
- Mount
- For the bumper cover
- Side
- Overview. Refer to OVERVIEW - BUMPER COVER MOUNT .
- Mount
- For securing the bumper cover
- Overview. Refer to OVERVIEW - BUMPER COVER MOUNT .
- Locking Mechanism
- For attaching the rear bumper cover to the upper mount
- Bolt
- Quantity: 2
- Tightening specification Refer to OVERVIEW - BUMPER COVER MOUNT .
- Nut
- Quantity: 4
- 4 Nm
- Cover
- For the towing eye
- Nut
- Quantity: 2
- 2 Nm
- Trim Molding
- Equipped on some models
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, A5 FROM PRODUCT IMPROVEMENT .
- Clips
- Quantity: 11
