Engine And Transmission, Separating, 3.0L Engine

WARNING: This page is about a different car, the 2024 Audi S5 and 2023 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Scissor Lift Table:VAS6131B
Scissor Lift Table - Audi Set:VAS6131/10
:VAS6131/11-1 from :VAS6131/11
:VAS6131/12-2 from :VAS6131/12
Hose Clip Pliers:VAS6362
Wrench - 21mm:T40263
Adapter:T40314

Procedure

Engine/transmission assembly removed and placed on the :VAS6131B .

-- Vehicles with particulate filter: remove the catalytic converter. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING, 3.0L ENGINE WITH PARTICULATE FILTER .

-- Remove the bolt -arrow- and free up the bracket -1- with the wiring harness.

Courtesy of AUDI OF AMERICA, LLC

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of accident due to the heavy weight of the subframe.

A second technician is required for the following work steps.

-- Remove the left and right bolt -2- and remove the subframe to the side to do so remove the supporting mounting element. (Shown on the installed engine.)

-- Place a cloth underneath to catch any escaping coolant.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamps -2 and 3- and remove the coolant hoses.

-- Remove the bolts -arrows- and push the ATF cooler with the hoses -1 and 4- attached slightly to the side.

-- Remove the lower cover -1- from the transmission in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Components could be destroyed by the camshaft timing chain skipping.

Turn the crankshaft only in direction of engine rotation, in direction of -arrow-.

-- To loosen the crankshaft, counterhold the torque converter bolt using the :T40263 and :T40314 on the vibration damper.

-- Remove the six bolts -arrow- for the torque converter on the drive plate -1-. Turn the crankshaft an additional 60° in the direction of engine rotation.

Courtesy of AUDI OF AMERICA, LLC

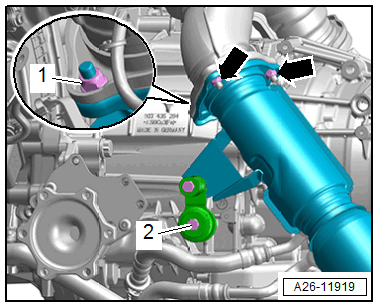

-- Remove the bolt -2- as well as the nuts -1 and arrows- for the left front muffler.

Courtesy of AUDI OF AMERICA, LLC

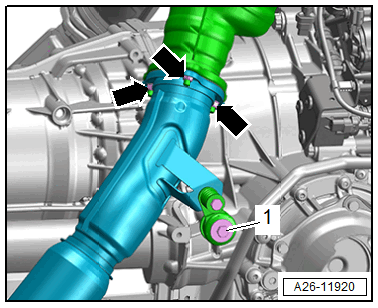

-- Remove the bolt -1- and nuts -arrows- for the right front muffler.

Courtesy of AUDI OF AMERICA, LLC

Fig 1: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging the coupling element in the front muffler.

Do not bend the coupling element in the front muffler more than 10°.

-- Remove the left and right bolts -arrows- and the corresponding front muffler.

-- Vehicles with particulate filter: remove the catalytic converter. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING, 3.0L ENGINE WITH PARTICULATE FILTER .

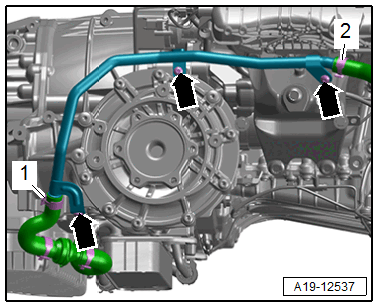

-- Remove the bolts -arrows- and move the right coolant pipe to the side.

Courtesy of AUDI OF AMERICA, LLC

-- Equip the :VAS6131B with the :VAS6131/10 and :VAS6131/11-1 , and :VAS6131/12-2 as follows:

Fig 2: Scissor Lift Chart

Courtesy of AUDI OF AMERICA, LLC

The remaining mounting elements remain unchanged.

Table Coordinates	Components from the :VAS6131/10 , :VAS6131/11-1 and :VAS6131/12-2
C7	/10-1	/12-2	/10-5	/10-12
E7	/10-1	/12-2	/10-5	/10-12
C10	/10-1	/10-4	/10-5	/10-12
F10	/10-1	/10-4	/10-5	/11-3

-- Place the left and right mounting element from the :VAS6131/10 and :VAS6131/12-2 on the engine.

Courtesy of AUDI OF AMERICA, LLC

-- Place the mounting element from the left :VAS6131/10 on the transmission.

Courtesy of AUDI OF AMERICA, LLC

-- Place the mounting element from the :VAS6131/10 and :VAS6131/11-1 on the right of the transmission.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the left and right spindles upward until all the mounting pins come into contact with the mounting points.

-- Tighten the mounting element base plates to 20 Nm on the :VAS6131B .

-- Remove the bolts -2 through 11- that attach the engine to the transmission.

Fig 3: Engine to Transmission Bolts And Alignment Sleeves -A-

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolt -1- for the starter.

-- Loosen the clamping screws on the side of the :VAS6131B and pull the rear table top with the transmission slightly to the rear, in direction of -arrow-. While doing so, remove the starter bolt completely.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the transmission all the way to the rear. If necessary, lower it slightly using the front spindles.
