Transmission, Removing, A4/A5 With 3.0L TDI Engine Gen I

WARNING: This page is about a different car, the 2024 Audi S5 and 2023 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Hose Clamps - Up To 25 mm:3094
Torque Wrench 1332 Insert - Ring Wrench - 16mm:VAG1332/14
Engine and Gearbox Jack:VAS6931
Tensioning Strap:T10038
Gearbox Support:T40173
Wrench - 21mm:T40263
Adapter:T40314
Locating Pins for Steering Box:T40334
Strut:T40335

Gearbox Support:T40173 , Preparing:

Courtesy of AUDI OF AMERICA, LLC

-- The bracket -arrow- must be turned so that the longer side faces upward, as shown.

Procedure

-- Position the front wheels so they are in the straight-ahead position.

-- Switch the ignition off.

-- Disconnect the battery ground cable. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the front exhaust pipe. Refer to FRONT MUFFLER, REMOVING AND INSTALLING - 2.0 or FRONT MUFFLER, REMOVING AND INSTALLING - 2.9, 3.0 .

-- Remove the emissions control module. Refer to the appropriate Service Information .

-- Remove the driveshaft. Refer to the appropriate Service Information .

-- Remove the subframe crossbrace. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .

-- Remove the steering intermediate shaft from the steering gear and the push together. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .

-- Remove the ATF cooler. Refer to ATF COOLER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and free up the parking lock emergency release cable -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2 through 5- connecting the engine to the transmission that are accessible from above.

Fig 1: Engine to Transmission Bolts And Alignment Sleeves -A-

Courtesy of AUDI OF AMERICA, LLC

-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION - 2.0 or ENGINE, SUPPORTING IN INSTALLATION POSITION - 2.9, 3.0 .

-- Remove the front wheels. Refer to WHEEL, CHANGING .

-- Remove the left and right nuts -1 and 3-, and remove the drive axle cover -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lower cover -1- from the transmission in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of Damaging the Engine by the Timing Mechanism Skipping

- Turn the engine only in the direction of engine rotation.

-- Turn the crankshaft with the :T40263 and :T40314 in direction of -arrow-.

-- Remove the six torque converter -1- bolts -arrow- while turning the crankshaft an additional 60° in the direction of engine rotation.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right drive axle heat shield. Refer to DRIVE AXLE HEAT SHIELD, REMOVING AND INSTALLING .

-- Remove the left and right drive axle from the transmission flange shaft. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

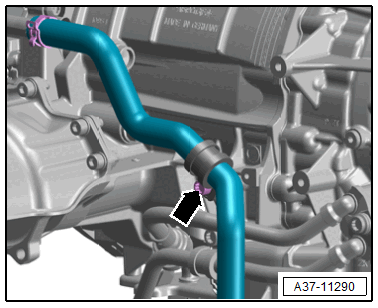

-- Remove the bolt -arrow- and move the coolant hose to the side.

Courtesy of AUDI OF AMERICA, LLC

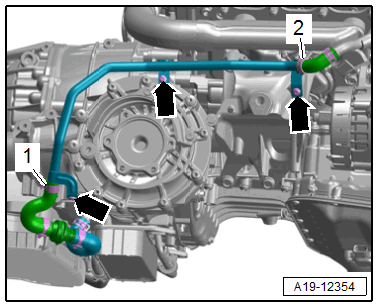

-- Remove the bolts -arrows- and move the right coolant pipe to the side.

Courtesy of AUDI OF AMERICA, LLC

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of Destroying Due to Electrostatic Charge

- Do not touch the connector terminals.

- Touch a grounded object (for example the hoist) and discharge any static electricity.

-- Turn the twist lock counter-clockwise in direction of -arrow- and disconnect the connector -1- from the transmission.

-- Loosen the retainer, push the release downward and disconnect the connectors -3 and 4- from the Power Steering Control Module -J500-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring duct -2- for the wires on the steering gear -1-.

-- Insert the :T40335 on the left and right side in the subframe. If necessary, adjust the brace at the knurled handle -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Secure the left and right brace with a splint -arrow-.

Ignore :T40334 .

CAUTION:

There Is a Risk of Damaging the Boots

- Do not grab the boots when removing the steering gear.

-- Support the steering gear -2- with a foam mat -1- placed between it and the :VAS6931 .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the :T40334 on the left and right side.

-- Lower the steering gear and push slightly forward.

-- Remove the bolts -1 and 11-.

Fig 2: Engine to Transmission Bolts And Alignment Sleeves -A-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the starter slightly from the transmission and leave it in the installation position.

-- Bring the steering gear back into the installation position and secure with the :T40334 .

-- Remove remaining transmission to engine connecting bolts -6 through 10-.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of Leaks by Damaging the Oil Pan

- The :T40173 must not be set on the ATF pan.

-- Prepare the :VAS6931 with the :T40173 and place at the bottom of the transmission and secure using the tensioning strap -1-.

-- Remove the bolts -arrows- for the tunnel crossmember.

Courtesy of AUDI OF AMERICA, LLC

For clarity, the :T40173 is not illustrated.

-- Push the transmission off the engine and lower it carefully using the :VAS6931 while doing so pay attention to wires and the selective catalytic reduction line.
