Transmission, Removing, A4/A5 With 2.9L/3.0L TFSI Engine

WARNING: This page is about a different car, the 2024 Audi S5 and 2023 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Hose Clamps - Up To 25mm:3094
Torque Wrench 1332 Insert - Ring Wrench - 16mm:VAG1332/14
Engine and Gearbox Jack:VAS6931
Torque Wrench Adapter:VAS6948
Gearbox Support:T40173
Wrench - 21mm:T40263
Adapter:T40314
Tensioning Strap:T10038
Strut:T40335

Gearbox Support:T40173 , Preparing:

Courtesy of AUDI OF AMERICA, LLC

-- The bracket -arrow- must be turned so that the longer side faces upward, as shown.

Procedure

-- Position the front wheels so they are in the straight-ahead position.

-- Switch the ignition off.

-- Disconnect the battery ground cable. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the left and right front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING - 2.0 or FRONT MUFFLER, REMOVING AND INSTALLING - 2.9, 3.0 .

-- Remove the catalytic converter. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING - 2.0 or CATALYTIC CONVERTER, REMOVING AND INSTALLING - 2.9, 3.0 .

-- Remove the bolts -2 through 5- connecting the engine to the transmission that are accessible from above.

Fig 1: Engine to Transmission Bolts And Alignment Sleeves -A-

Courtesy of AUDI OF AMERICA, LLC

-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION - 2.0 or ENGINE, SUPPORTING IN INSTALLATION POSITION - 2.9, 3.0 .

-- Remove the front wheels. Refer to WHEEL, CHANGING .

-- Drain the coolant. Refer to COOLING SYSTEM/COOLANT - 2.0 or COOLANT, DRAINING AND FILLING - 2.9, 3.0 .

-- Remove the driveshaft. Refer to the appropriate service Information .

-- Remove the subframe crossbrace. Refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .

-- Remove the steering intermediate shaft from the steering gear and the push together. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and push the ATF cooler with the connected hoses -1, 2 and 4- slightly to the side.

Courtesy of AUDI OF AMERICA, LLC

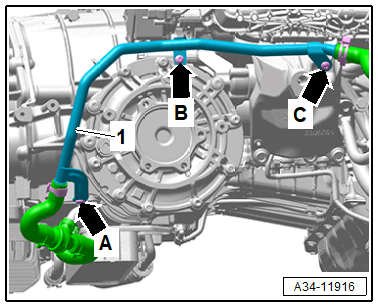

-- Loosen the bolts -arrows- and move the coolant pipe -1- to the side.

Courtesy of AUDI OF AMERICA, LLC

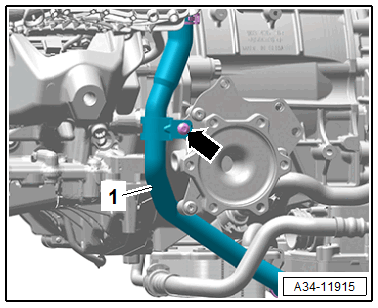

-- Loosen the bolt -arrow- and let the coolant pipe -1- hang.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and free up the parking lock emergency release cable -1-.

Courtesy of AUDI OF AMERICA, LLC

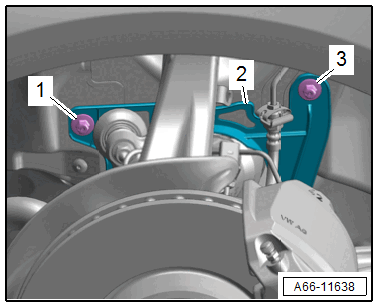

-- Remove the left and right nuts -1 and 3-, and remove the drive axle cover -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lower cover -1- from the transmission in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging the engine by the timing mechanism skipping.

- Turn the engine only in the direction of engine rotation.

-- Turn the crankshaft with the :T40263 and :T40314 in direction of -arrow-.

-- Remove the six torque converter -1- bolts -arrow- while turning the crankshaft an additional 60° in the direction of engine rotation.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right drive axle heat shield. Refer to DRIVE AXLE HEAT SHIELD, REMOVING AND INSTALLING .

-- Remove the left and right drive axle from the transmission flange shaft. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

Vehicles with 2.9L TFSI Engine

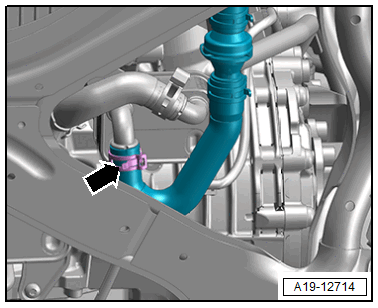

-- Loosen the hose clamp -arrow- and remove the coolant hose.

Courtesy of AUDI OF AMERICA, LLC

All Vehicles

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness.

CAUTION:

Risk of destroying due to electrostatic charge.

- Do not touch the connector terminals.

- Touch a grounded object (for example the hoist) and discharge any static electricity.

-- Turn the twist lock counter-clockwise -arrow- and disconnect the connector -1- from the transmission.

-- Remove the bolt -1- with the :VAG1332/14 and the :VAS6948 .

Fig 2: Engine to Transmission Bolts And Alignment Sleeves -A-

Courtesy of AUDI OF AMERICA, LLC

-- Remove remaining transmission to engine connecting bolts -6 through 10-.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of Leaks by Damaging the Oil Pan

- The :T40173 must not be set on the ATF pan.

-- Prepare the :VAS6931 with the :T40173 and place at the bottom of the transmission and secure using the tensioning strap -1-.

-- Remove the bolts -arrows- for the tunnel crossmember.

Courtesy of AUDI OF AMERICA, LLC

For clarity, the :T40173 is not illustrated.

-- Remove the transmission from the engine, while removing the starter bolt completely.

-- Carefully lower the :VAS6931 while paying attention to the wires at the same time.
