Parking Lock Emergency Release Cable, Removing And Installing, A4/A5: Removing
WARNING: This page is about a different car, the 2024 Audi S5 and 2023 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Pull the parking brake button to activate the electro-mechanical parking brake.
-- Remove the selector mechanism. Refer to SELECTOR MECHANISM, REMOVING AND INSTALLING .
-- Remove the noise insulation.

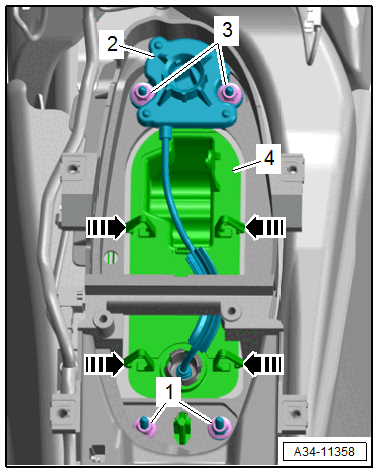

-- Remove the nuts -1 and 3- and free up the mount -2- for the emergency release.
-- Release the catches in direction of -arrows- and lower the bracket -4- for the emergency release.
-- Remove the rear noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
-- Remove the tunnel heat shield. Refer to OVERVIEW - HEAT SHIELDS .
-- Remove the bolts -arrows- and free up and remove the parking lock emergency release cable -1-.
