ATF Lines, Removing And Installing: Notes
WARNING: This page is about a different car, the 2024 Audi S5 and 2023 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Used Oil Collection and Extraction Unit:SMN372500
- Engine Bung Set:VAS6122
- Hose diameter approximately 18 mm
- Compressed air gun, commercially available
- Protective Eyewear
Requirements
- General repair instructions. Refer to GENERAL REPAIR INFORMATION .
- Guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
- Seal the open lines and connections with clean plugs from the :VAS6122 .
- Replace the O-rings after removal.
- Check the ATF level after removing and Installing ATF lines. Refer to ATF LEVEL, CHECKING .
Removing and Installing
-- Remove the noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
- Rear noise insulation, A4/A5
- Center noise insulation, Q5
-- Disconnect the ATF lines -arrows-. Refer to Figure.

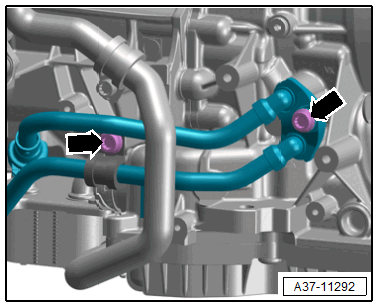

-- Remove the bolts -arrows- and remove the ATF lines from the transmission. (different versions)
