Transmission Fluid Pan, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi S5, 2024 Audi RS 5, 2023 Audi S5, and 2023 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
- When installing use the complete repair kit.
-- Clean the magnets -arrows-.
-- Thoroughly clean the sealing surface.
-- Install the bolts -1 and 2- by hand until the bolt heads make contact.

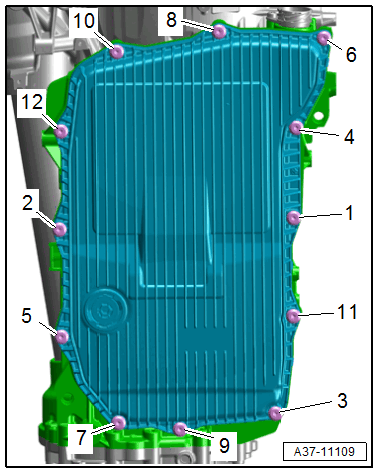

-- Tighten the bolts in the specified tightening sequence.
-- Fill the ATF. Refer to ATF, DRAINING AND FILLING .
