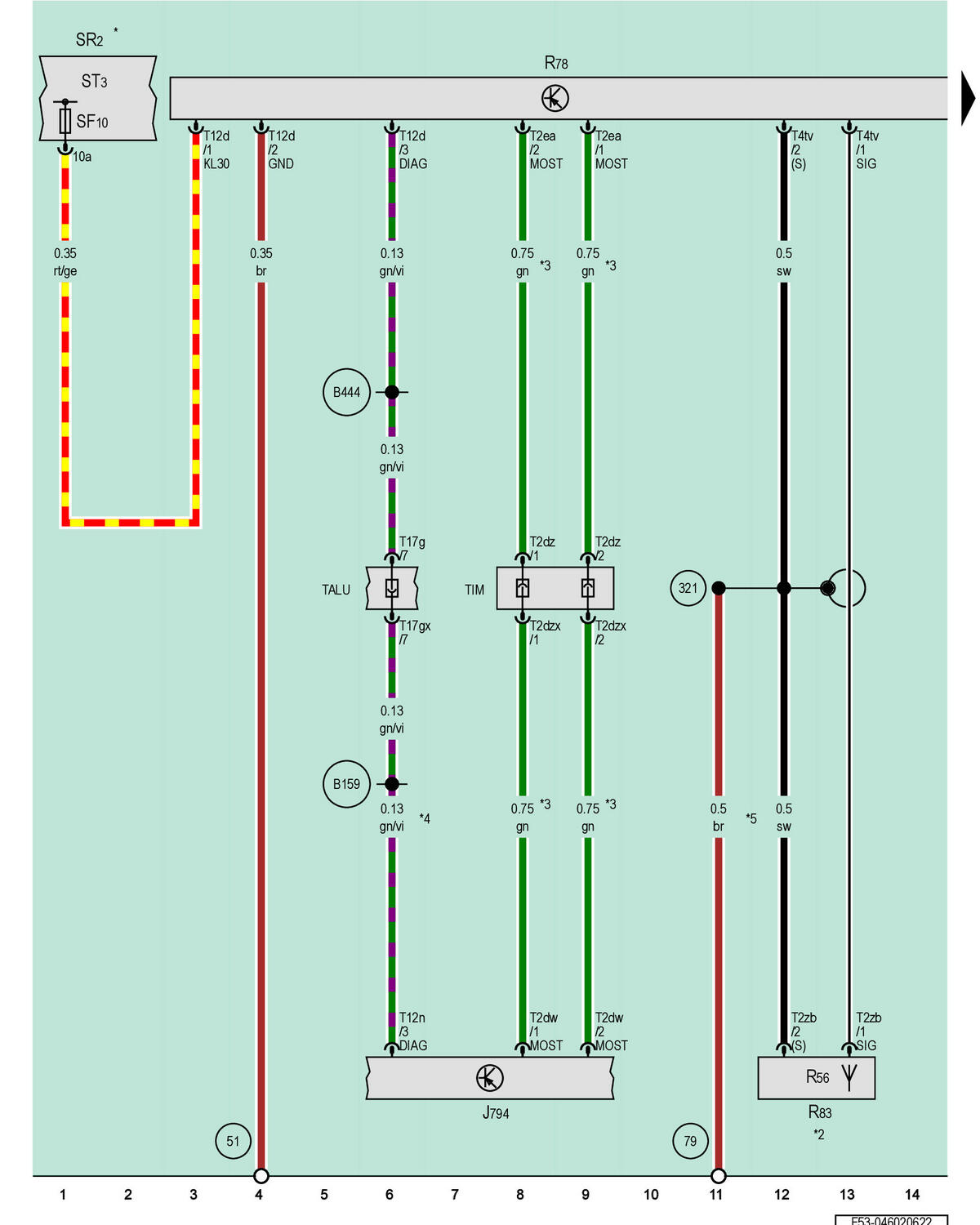

TV Antenna 2, TV Tuner, TV Antenna Amplifier 2

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R56

TV Antenna 2

R78

TV Tuner

R83

TV Antenna Amplifier 2, In the Left Rear Side Panel, Rear Window, Lower Right

SR2

Relay and Fuse Panel 2

ST3

Fuse Panel 3, Brown

SF10

Fuse 10 (On Fuse Panel F)

T2dw

2-Pin Connector, Black

T2dz

2-Pin Connector, Black

T2dzx

2-Pin Connector, Black

T2ea

2-Pin Connector, Black

T2zb

2-Pin Connector, Green, Brown

T4tv

4-Pin Connector, Green

T12d

12-Pin Connector, Black

T12n

12-Pin Connector, Black

T17g

17-Pin Connector, Blue

T17gx

17-Pin Connector, Blue

TALU

Coupling Point on Left A-Pillar, Bottom

TIM

Coupling Point in Interior, Center

Ground Connection in Luggage Compartment, Right

Ground Connection on Left B-Pillar

321

TV Shielding 2 Ground Connection (in Communication Wiring Harness)

B159

Diagnostic Connection (in Interior Wiring Harness)

B444

OBD Connection 1 (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for Fuse Positions

Different Connector Color Possible

Fiber Optic Cable

Refer to Applicable Wiring Diagram for Infotainment Most Bus

For Convertible
