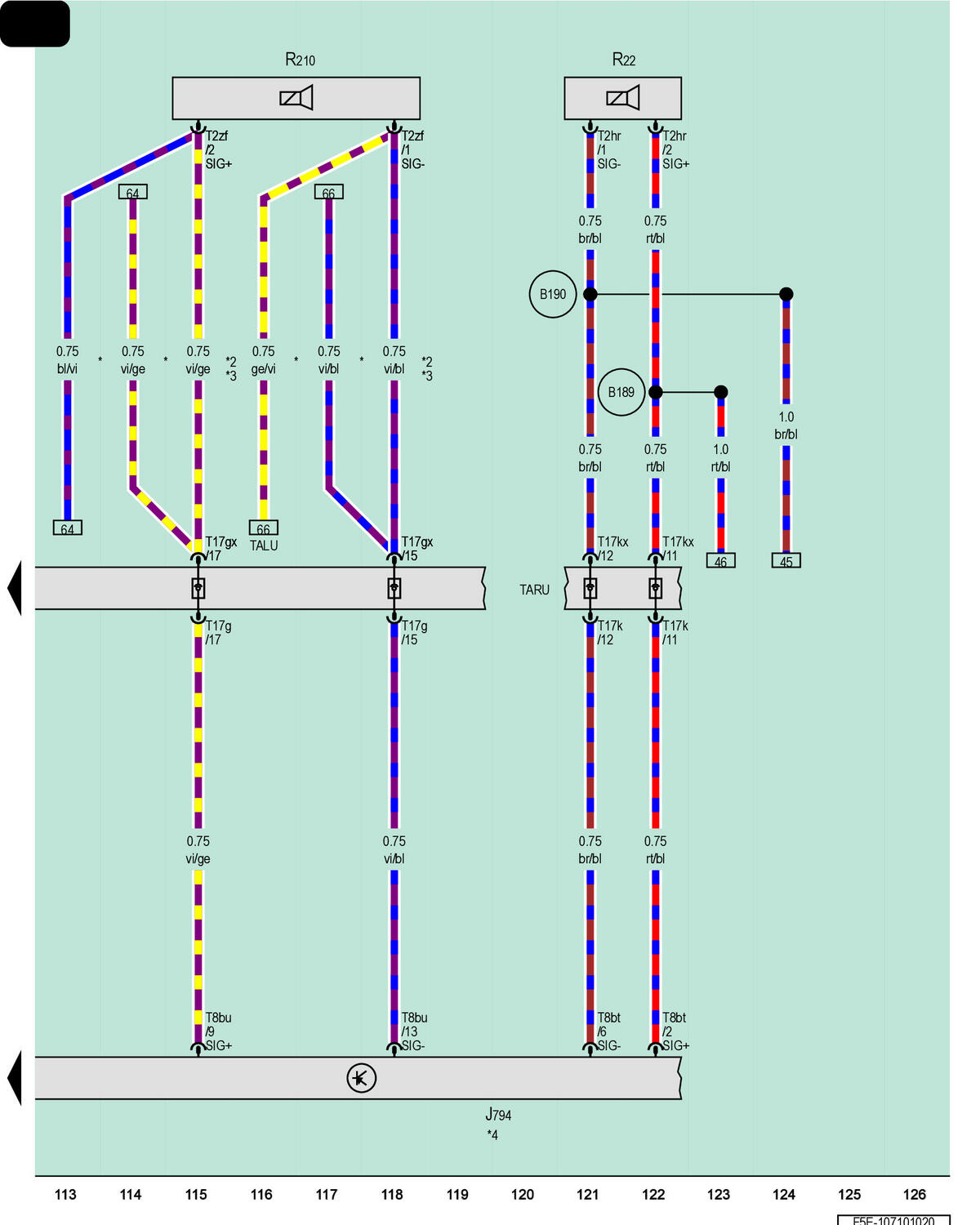

Information Electronics Control Module 1, Right Front Treble Speaker, Right Effects Speaker
J794
Information Electronics Control Module 1
R22
Right Front Treble Speaker
R210
Right Effects Speaker
T2hr
2-Pin Connector, Black
T2zf
2-Pin Connector, Black
T8bt
8-Pin Connector, Brown
T8bu
8-Pin Connector, Black
T17g
17-Pin Connector, Blue
T17gx
17-Pin Connector, Blue
T17k
17-Pin Connector, Black
T17kx
17-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
TARU
Coupling Point on Right A-Pillar, Bottom
B189
Right Front Speaker Positive Connection (in Interior Wiring Harness)
B190
Right Front Speaker Negative Connection (in Interior Wiring Harness)
*
For Convertible
*2
Coupe
*3
Sportback
*4
Refer to Applicable MMI (Information Electronics) Wiring Diagram
