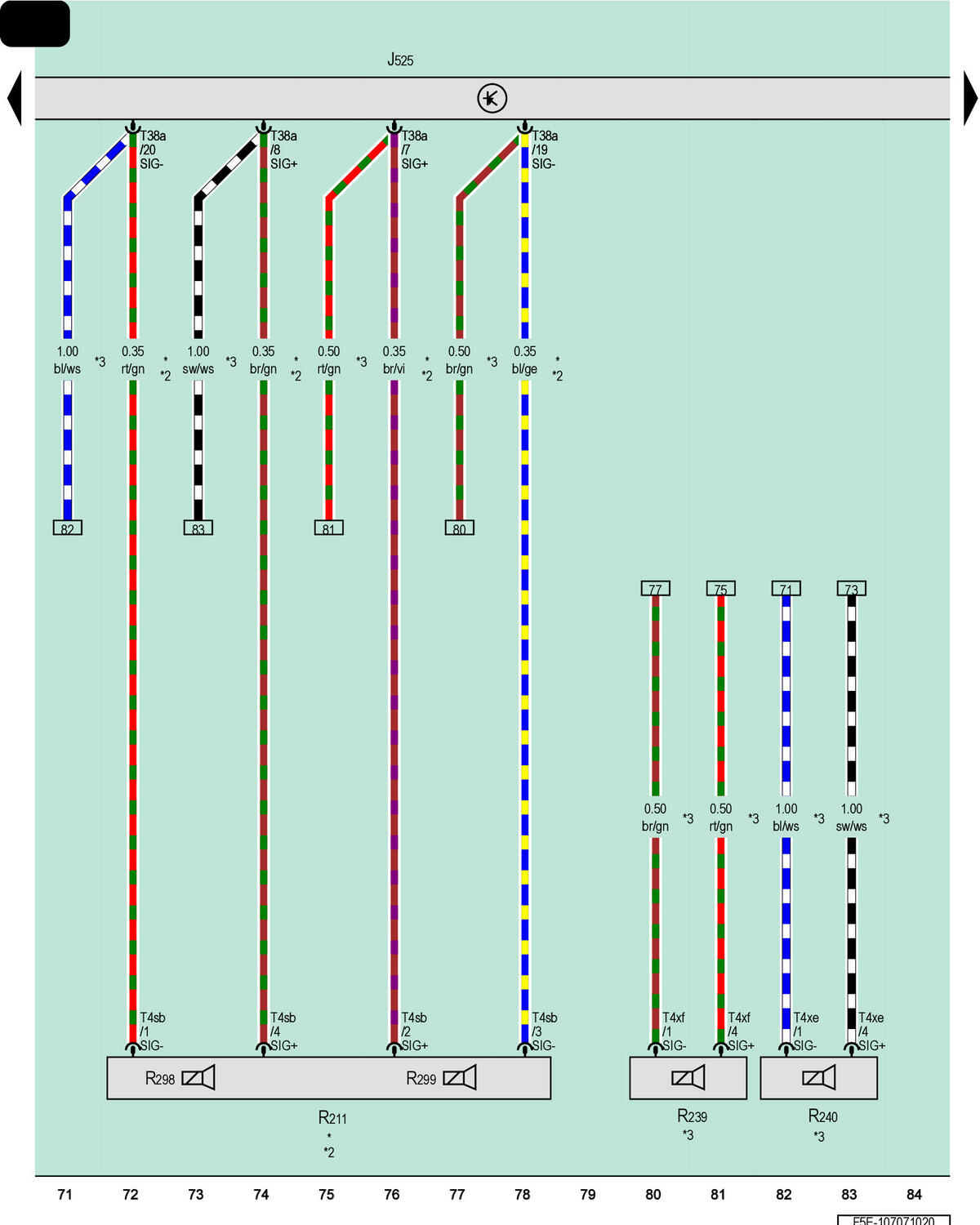

Digital Sound System Control Module, Subwoofer, Left Rear Subwoofer, Right Rear Subwoofer

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

R211

Subwoofer

R239

Left Rear Subwoofer

R240

Right Rear Subwoofer

R298

Dual Subwoofer Speaker 1

R299

Dual Subwoofer Speaker 2

T4sb

4-Pin Connector, Black

T4xe

4-Pin Connector, Black

T4xf

4-Pin Connector, Black

T38a

38-Pin Connector, Black

*

Coupe

*2

Sportback

*3

For Convertible
