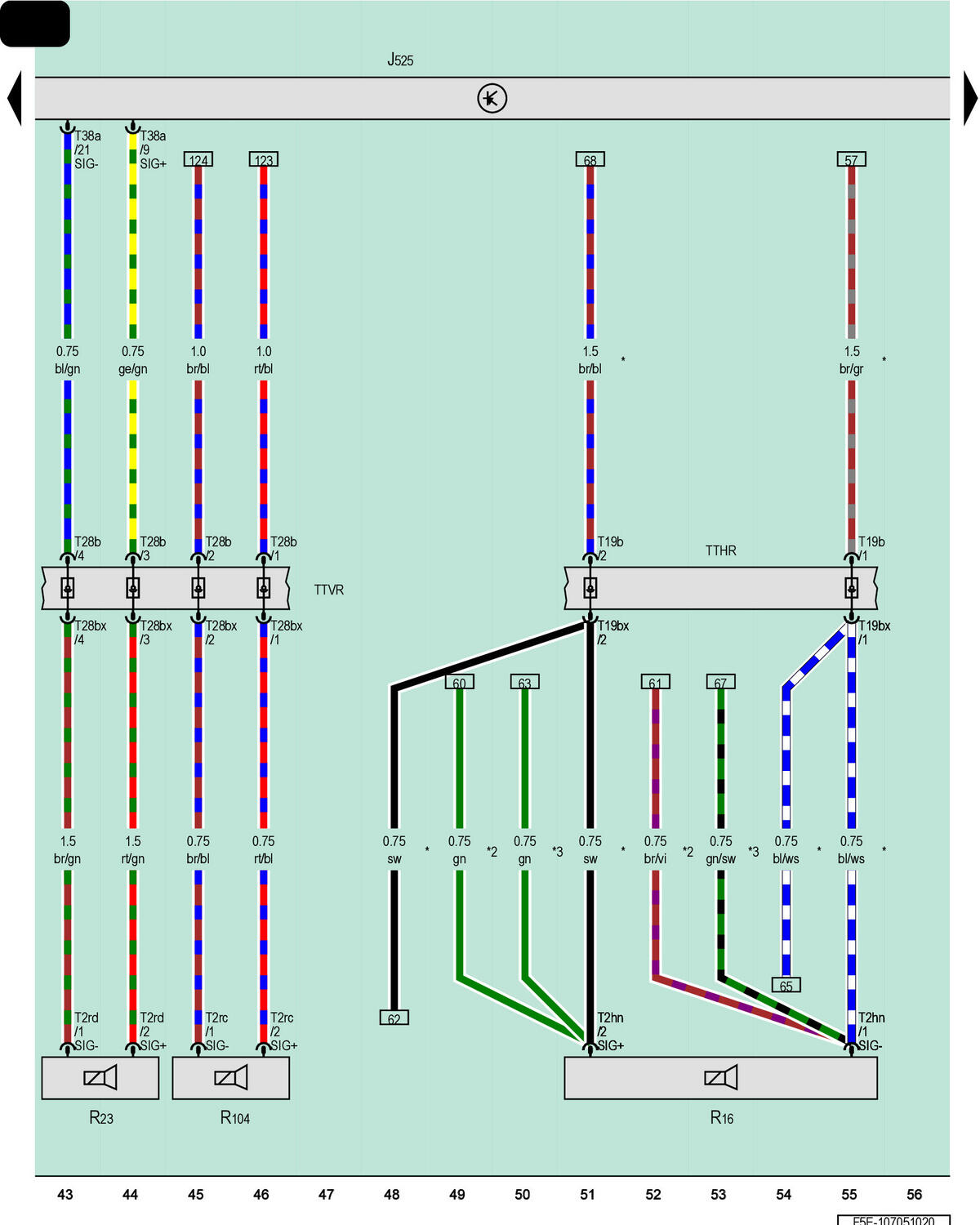

Digital Sound System Control Module, Right Rear Treble Speaker, Right Front Bass Speaker, Right Front Midrange Speaker

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

R16

Right Rear Treble Speaker

R23

Right Front Bass Speaker

R104

Right Front Midrange Speaker

T2hn

2-Pin Connector, Black

T2rc

2-Pin Connector, Black

T2rd

2-Pin Connector, Black

T19b

19-Pin Connector, Black

T19bx

19-Pin Connector, Black

T28b

28-Pin Connector, Black

T28bx

28-Pin Connector, Black

T38a

38-Pin Connector, Black

TTHR

Right Rear Door Coupling Point

TTVR

Right Front Door Coupling Point

*

Sportback

*2

For Convertible

*3

Coupe
