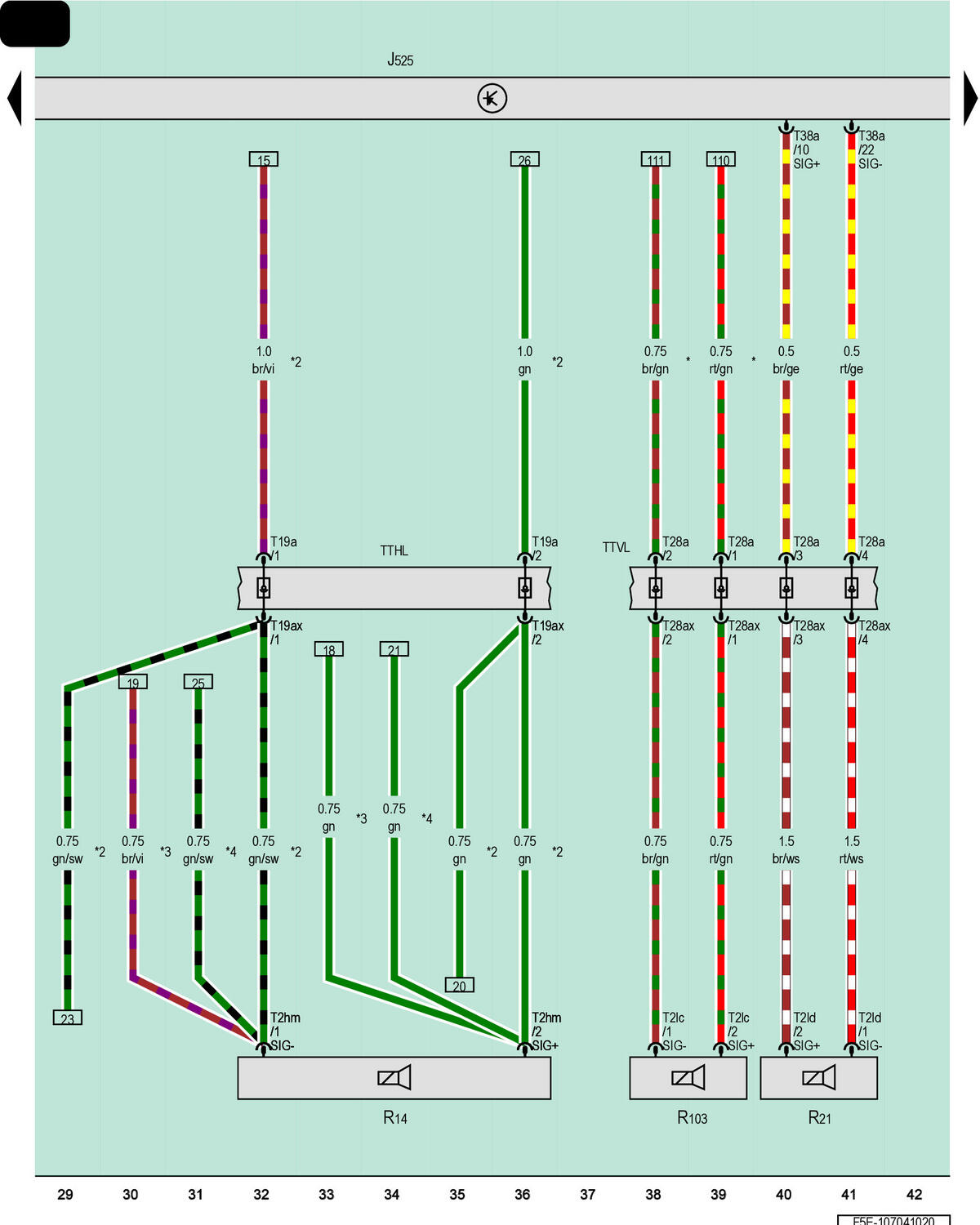

Digital Sound System Control Module, Left Rear Treble Speaker, Left Front Bass Speaker, Left Front Midrange Speaker

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

R14

Left Rear Treble Speaker

R21

Left Front Bass Speaker

R103

Left Front Midrange Speaker

T2hm

2-Pin Connector, Black

T2lc

2-Pin Connector, Black

T2ld

2-Pin Connector, Yellow

T19a

19-Pin Connector, Black

T19ax

19-Pin Connector, Black

T28a

28-Pin Connector, Black

T28ax

28-Pin Connector, Black

T38a

38-Pin Connector, Black

TTHL

Left Rear Door Coupling Point

TTVL

Left Front Door Coupling Point

*

Diameter Depends on Equipment

*2

Sportback

*3

For Convertible

*4

Coupe
