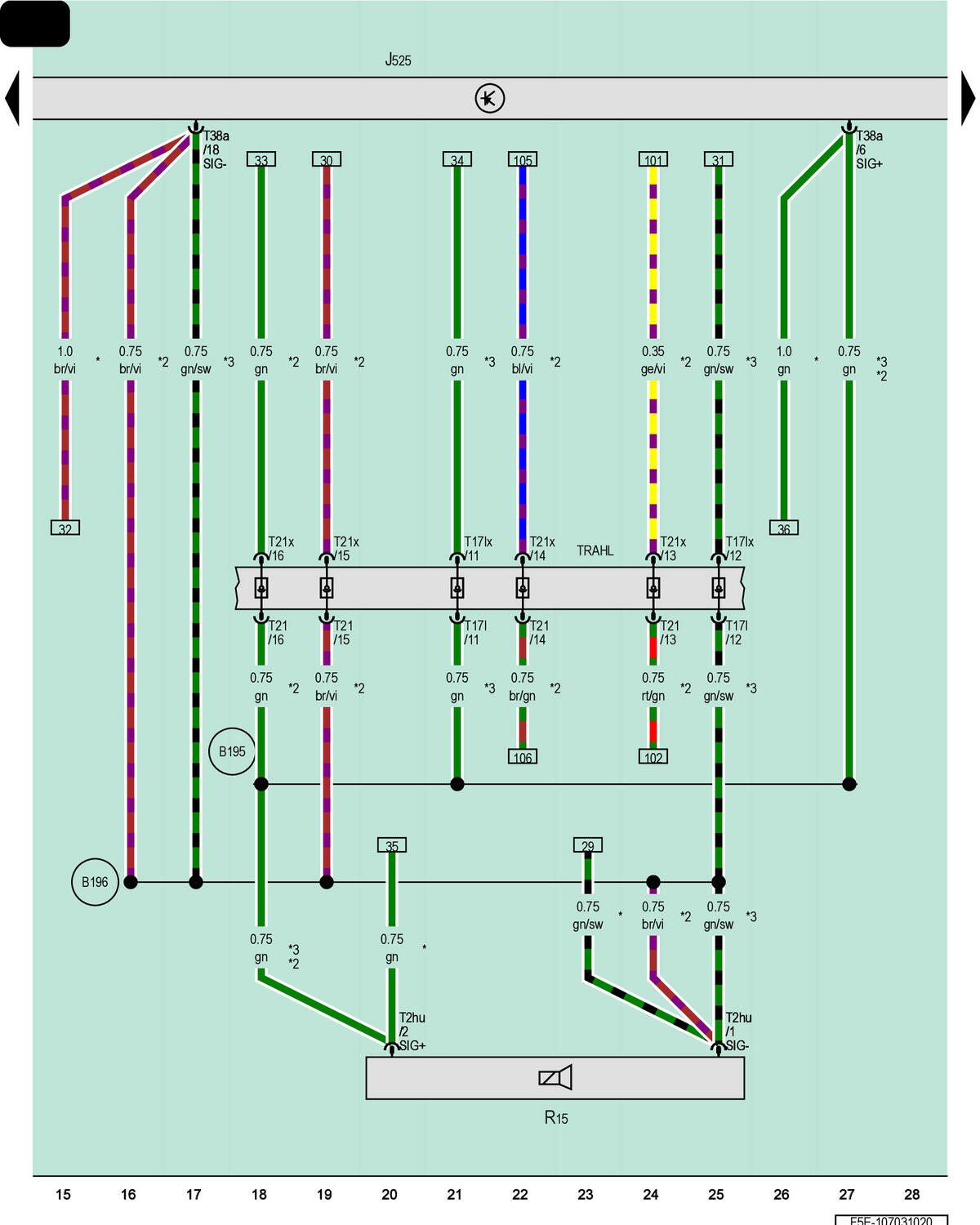

Digital Sound System Control Module, Left Rear Bass Speaker

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

R15

Left Rear Bass Speaker

T2hu

2-Pin Connector, Black

T17l

17-Pin Connector, Black

T17lx

17-Pin Connector, Black

T21

21-Pin Connector, Black

T21x

21-Pin Connector, Black

T38a

38-Pin Connector, Black

TRAHL

Left Rear Wheel Housing Wiring Coupling Point

B195

Left Rear Speaker Positive Connection (in Interior Wiring Harness)

B196

Left Rear Speaker Negative Connection (in Interior Wiring Harness)

*

Sportback

*2

For Convertible

*3

Coupe
