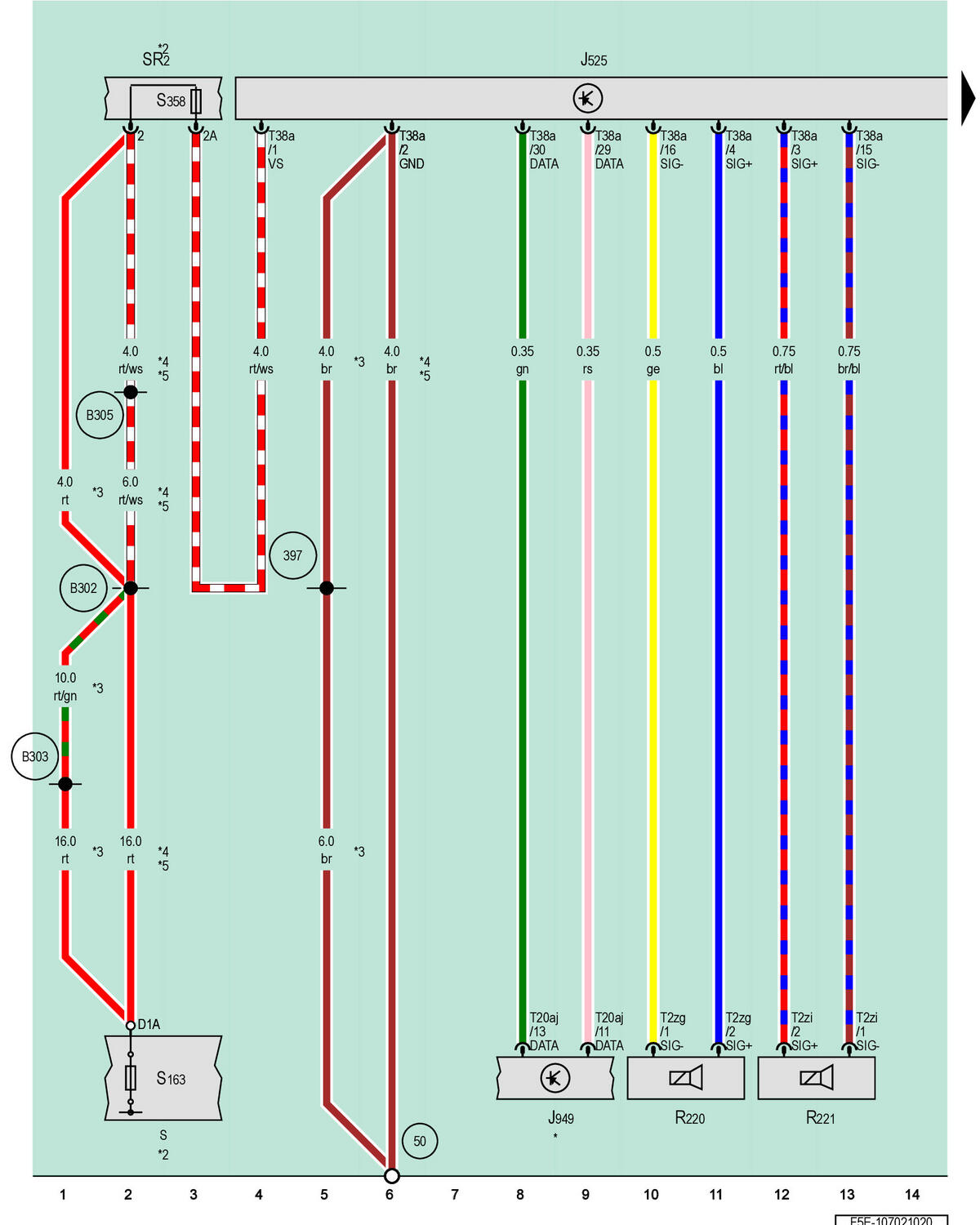

Digital Sound System Control Module, Control Module For Emergency Call Module And Communication Unit, Left Front Treble Speaker 2, Right Front Treble Speaker 2

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

J949

Control Module for Emergency Call Module and Communication Unit

R220

Left Front Treble Speaker 2

R221

Right Front Treble Speaker 2

S

Fuses (On Fuse Panel)

SR2

Relay and Fuse Panel 2

S163

Fuse 2 (Terminal 30) on Battery Fuse Panel

S358

Digital Sound System Fuse

T2zg

2-Pin Connector, Black

T2zi

2-Pin Connector, Black

T20aj

20-Pin Connector, Naturally Cloudy

T38a

38-Pin Connector, Black

50

Ground Connection in Luggage Compartment, Left

397

Ground Connection 32 (in Main Wiring Harness)

B302

Positive Connection 6 (30) (in Main Wiring Harness)

B303

Positive Connection 7 (30) (in Main Wiring Harness)

B305

Positive Connection 9 (30) (in Main Wiring Harness)

*

Refer to Applicable Communication Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Fuse Positions

*3

For Convertible

*4

Sportback

*5

Coupe
