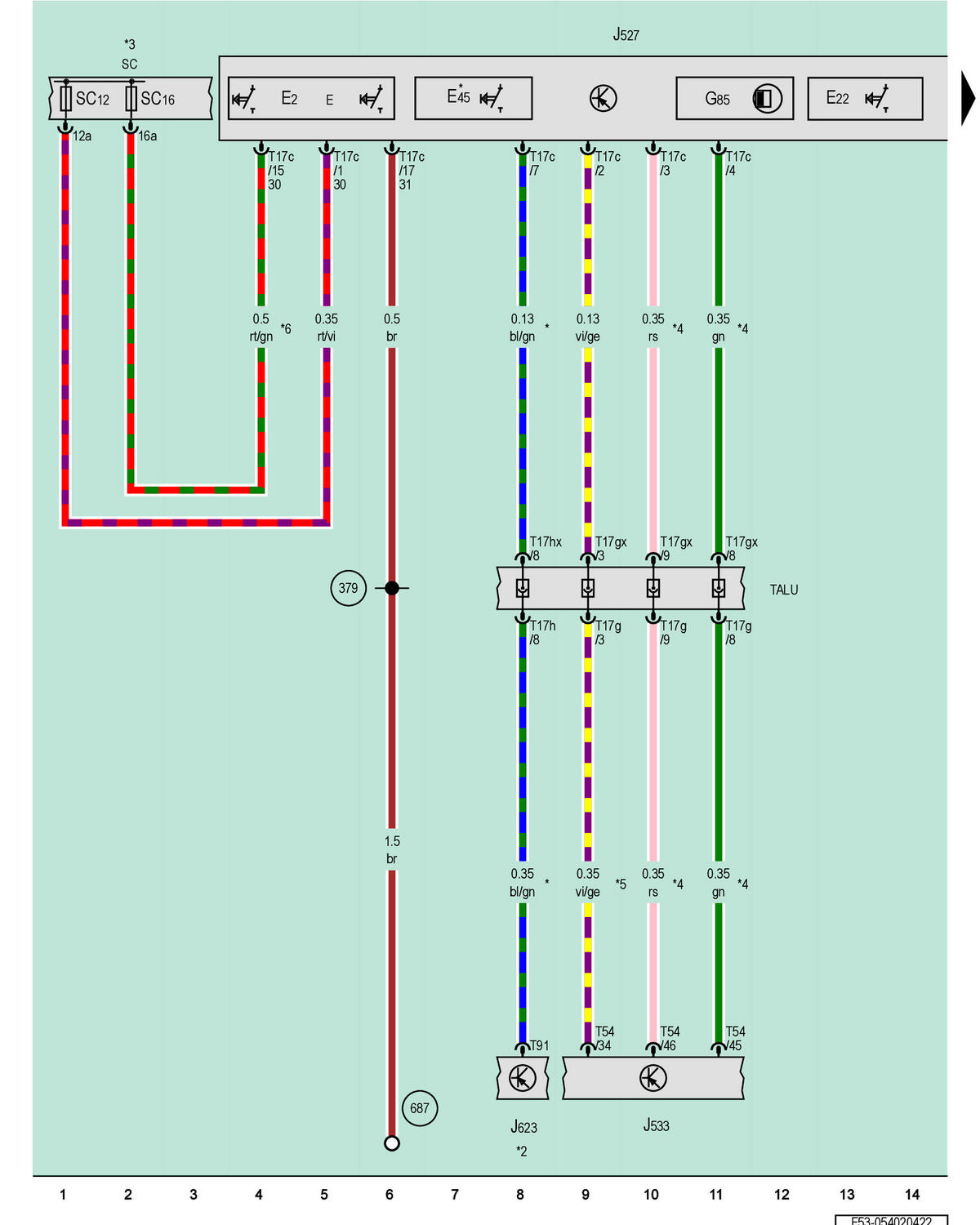

Windshield Wiper Switch, Turn Signal Switch, Windshield Wiper Intermittent Mode Switch, Cruise Control Switch, Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Fuse Panel C
E
Windshield Wiper Switch
E2
Turn Signal Switch
E22
Windshield Wiper Intermittent Mode Switch
E45
Cruise Control Switch
G85
Steering Angle Sensor
J527
Steering Column Electronics Control Module
J533
Data Bus on Board Diagnostic Interface
J623
Engine/Motor Control Module
SC
Fuse Panel C
SC12
Fuse 12 (On Fuse Panel C)
SC16
Fuse 16 (On Fuse Panel C)
T17c
17-Pin Connector, Yellow
T17g
17-Pin Connector, Blue
T17gx
17-Pin Connector, Blue
T17h
17-Pin Connector, White
T17hx
17-Pin Connector, White
T54
54-Pin Connector, Black
T91
91-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
379
Ground Connection 14 (in Main Wiring Harness)
687
Ground Connection 1 on Center Tunnel
*
For Vehicles with Cruise Control System
*2
Refer to Applicable Engine Wiring Diagram
*3
Refer to Applicable Wiring Diagram for Fuse Positions
*4
Data Bus Wire (Flexray Bus)
*5
Diameter Depends on Equipment
*6
Steering Wheel Heating with Multifunction Steering Wheel
