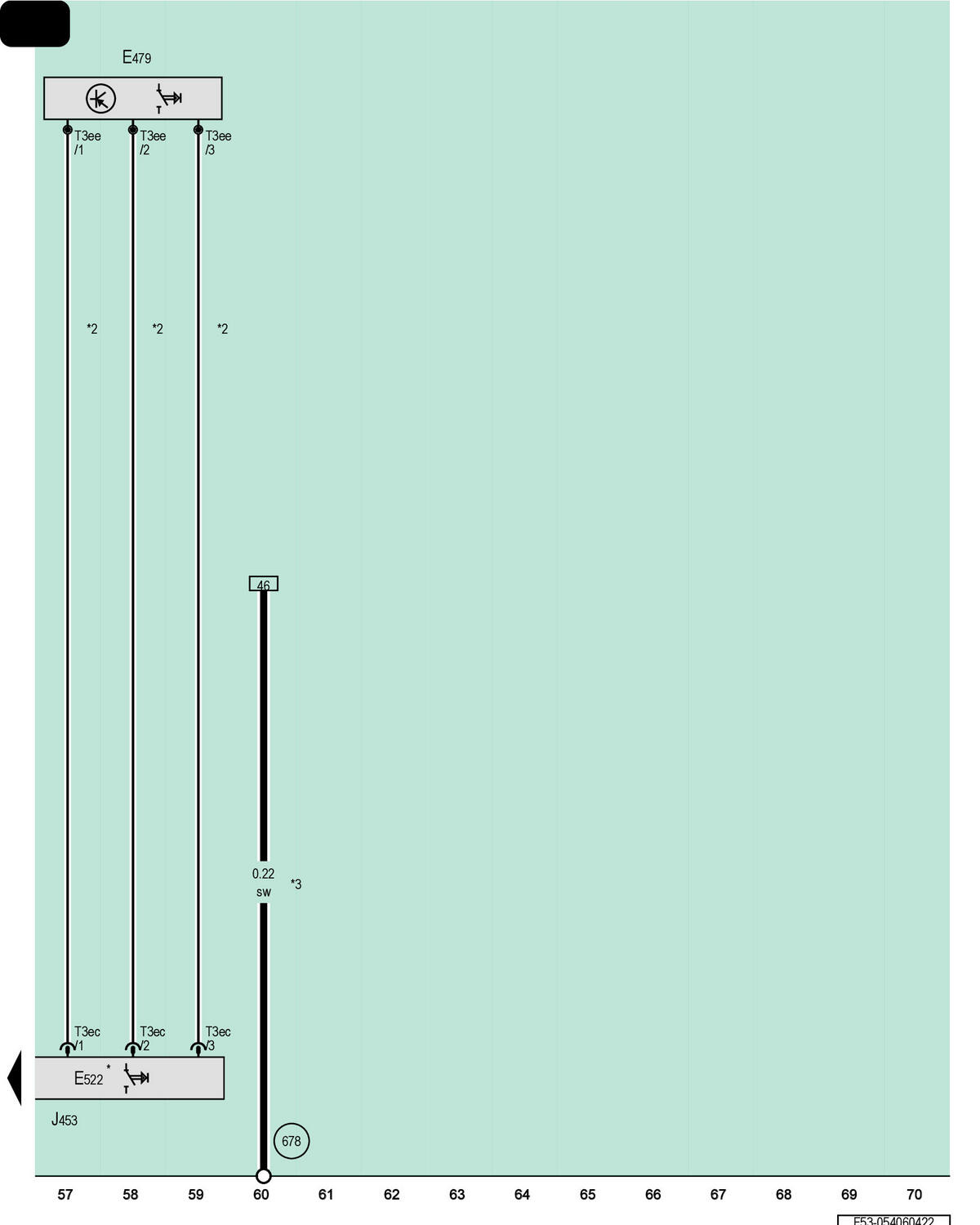

TIPTRONIC Upshift Button, MULTIFUNCTION Steering Wheel Control Module

Courtesy of AUDI OF AMERICA, LLC

E479

Tiptronic Upshift Button

E522

Steering Wheel Heating Button

J453

Multifunction Steering Wheel Control Module, In the Steering Wheel

T3ec

3-Pin Connector, Black

T3ee

3-Pin Connector

678

Ground Connection on Steering Wheel

*

For Vehicles with Heated Steering Wheel

*2

Adapter Cable

*3

For Vehicles with Steering Wheel Touch Recognition Control Module
