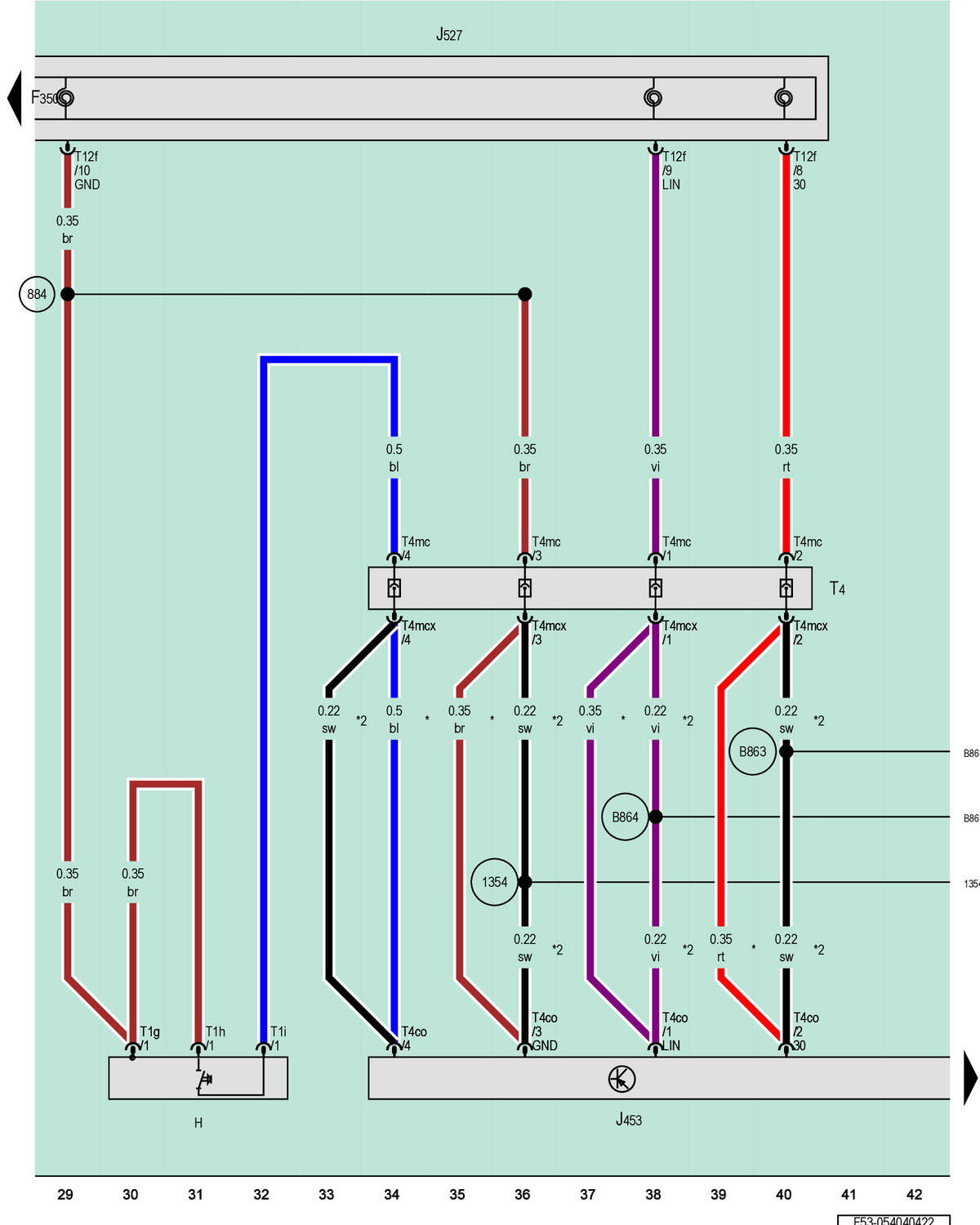

Signal Horn Activation, MULTIFUNCTION Steering Wheel Control Module, Steering Column Electronics Control Module

Courtesy of AUDI OF AMERICA, LLC

F350

Spiral Spring

H

Signal Horn Activation

J453

Multifunction Steering Wheel Control Module, In the Steering Wheel

J527

Steering Column Electronics Control Module

T1g

1-Pin Connector, Black

T1h

1-Pin Connector, Black

T1i

1-Pin Connector, Black

T12f

12-Pin Connector, Black

T4

4-Pin Connector, In the Steering Wheel

T4co

4-Pin Connector, Black

T4mc

4-Pin Connector

T4mcx

4-Pin Connector

884

Ground Connection 1 (in Steering Wheel Wiring Harness)

1354

Ground Connection 2 (in Steering Wheel Wiring Harness)

B863

Connection 30 (in Steering Wheel Wiring Harness)

B864

LIN Bus Connection (in Steering Wheel Wiring Harness)

*

For Vehicles Without Steering Wheel Touch Recognition Control Module

*2

For Vehicles with Steering Wheel Touch Recognition Control Module
