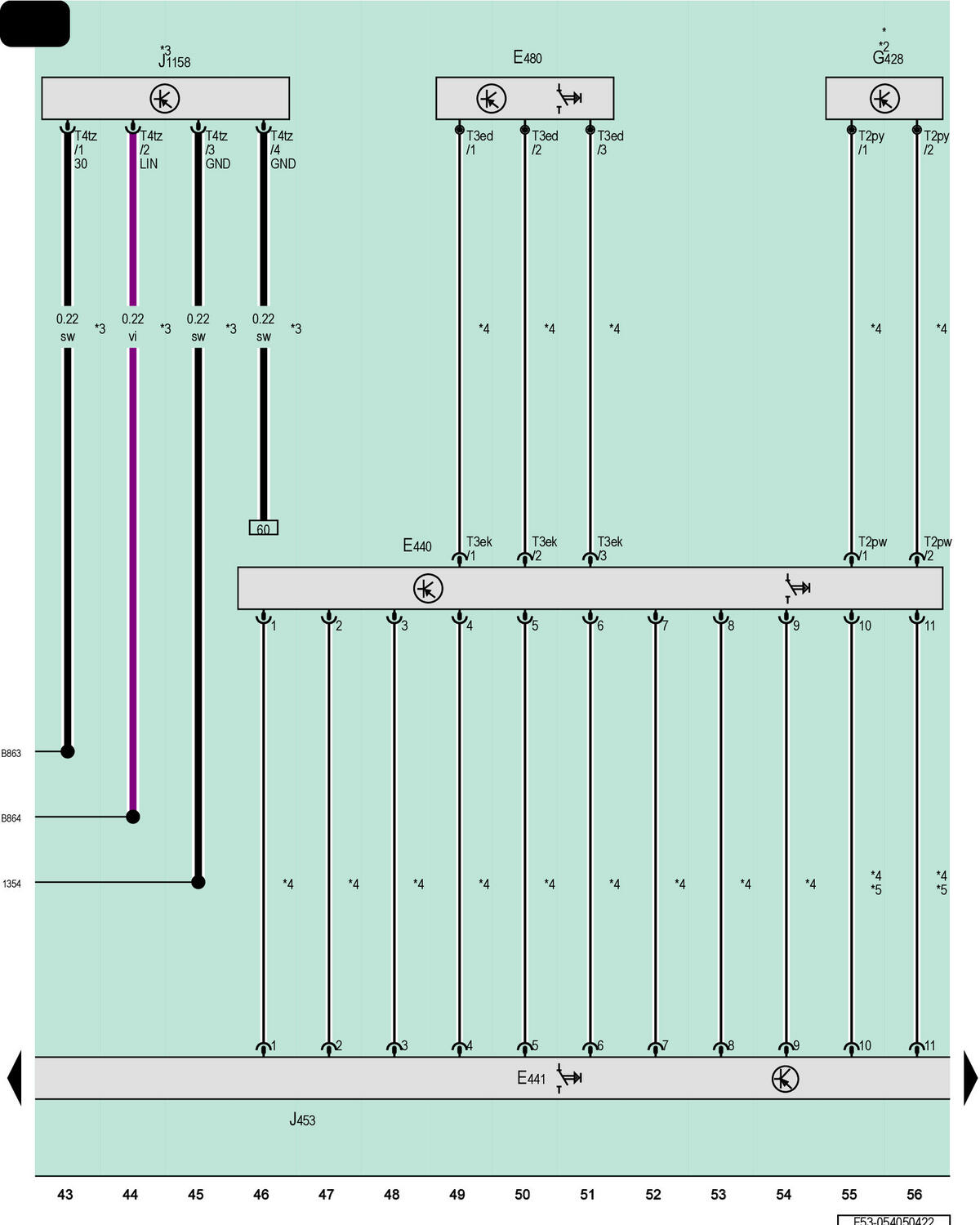

Left MULTIFUNCTION Buttons On Steering Wheel, Right MULTIFUNCTION Buttons On Steering Wheel, TIPTRONIC Downshift Button, MULTIFUNCTION Steering Wheel Control Module, Steering Wheel Touch Recognition Control Module

Courtesy of AUDI OF AMERICA, LLC

E440

Left Multifunction Buttons on Steering Wheel

E441

Right Multifunction Buttons on Steering Wheel

E480

Tiptronic Downshift Button

G428

Heated Steering Wheel Sensor

J453

Multifunction Steering Wheel Control Module, In the Steering Wheel

J1158

Steering Wheel Touch Recognition Control Module

T2pw

2-Pin Connector, Black

T2py

2-Pin Connector

T3ed

3-Pin Connector

T3ek

3-Pin Connector, Black

T4tz

4-Pin Connector

1354

Ground Connection 2 (in Steering Wheel Wiring Harness)

B863

Connection 30 (in Steering Wheel Wiring Harness)

B864

LIN Bus Connection (in Steering Wheel Wiring Harness)

*

For Vehicles with Heated Steering Wheel

*2

Pre-Wired Component

*3

For Vehicles with Steering Wheel Touch Recognition Control Module

*4

Adapter Cable

*5

Depending on Equipment
