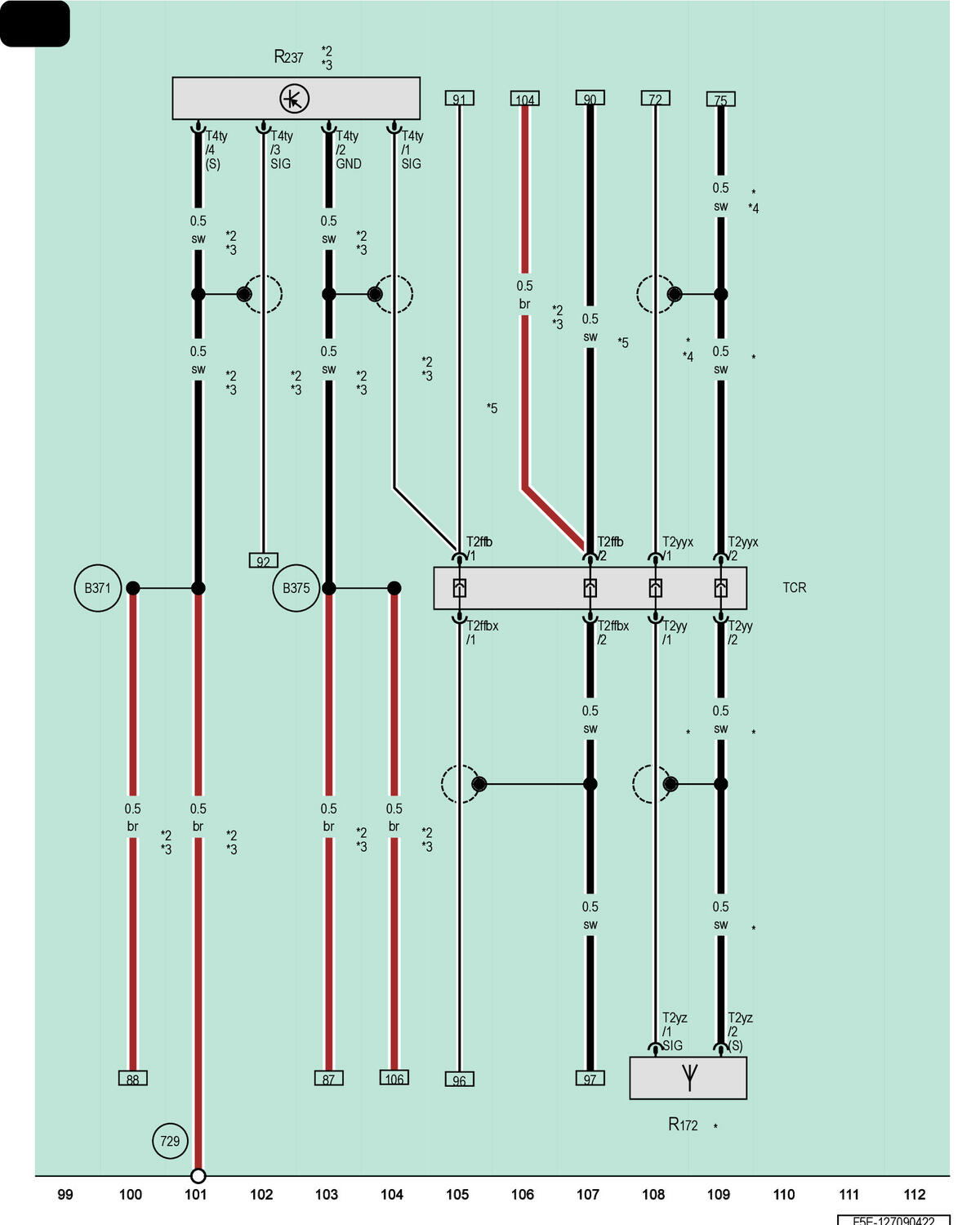

Satellite Tuner Antenna, Digital Radio Reception Impedance Converter
R172
Satellite Tuner Antenna
R237
Digital Radio Reception Impedance Converter
T2ffb
2-Pin Connector, Green
T2ffbx
2-Pin Connector, Green
T2yy
2-Pin Connector, Gray
T2yyx
2-Pin Connector, Gray
T2yz
2-Pin Connector, Green
T4ty
4-Pin Connector, Green
TCR
Coupling Point on Right C-Pillar, In the Right Rear Side Panel
729
Ground Connection on Left Rear Wheel Housing
B371
Antenna Connection 1 (in Main Wiring Harness)
B375
Antenna Connection 5 (in Main Wiring Harness)
*
For USA Only
*2
For Vehicles with Digital Radio
*3
Not for USA
*4
For Vehicles with Satellite Radio
*5
Depending on Equipment
