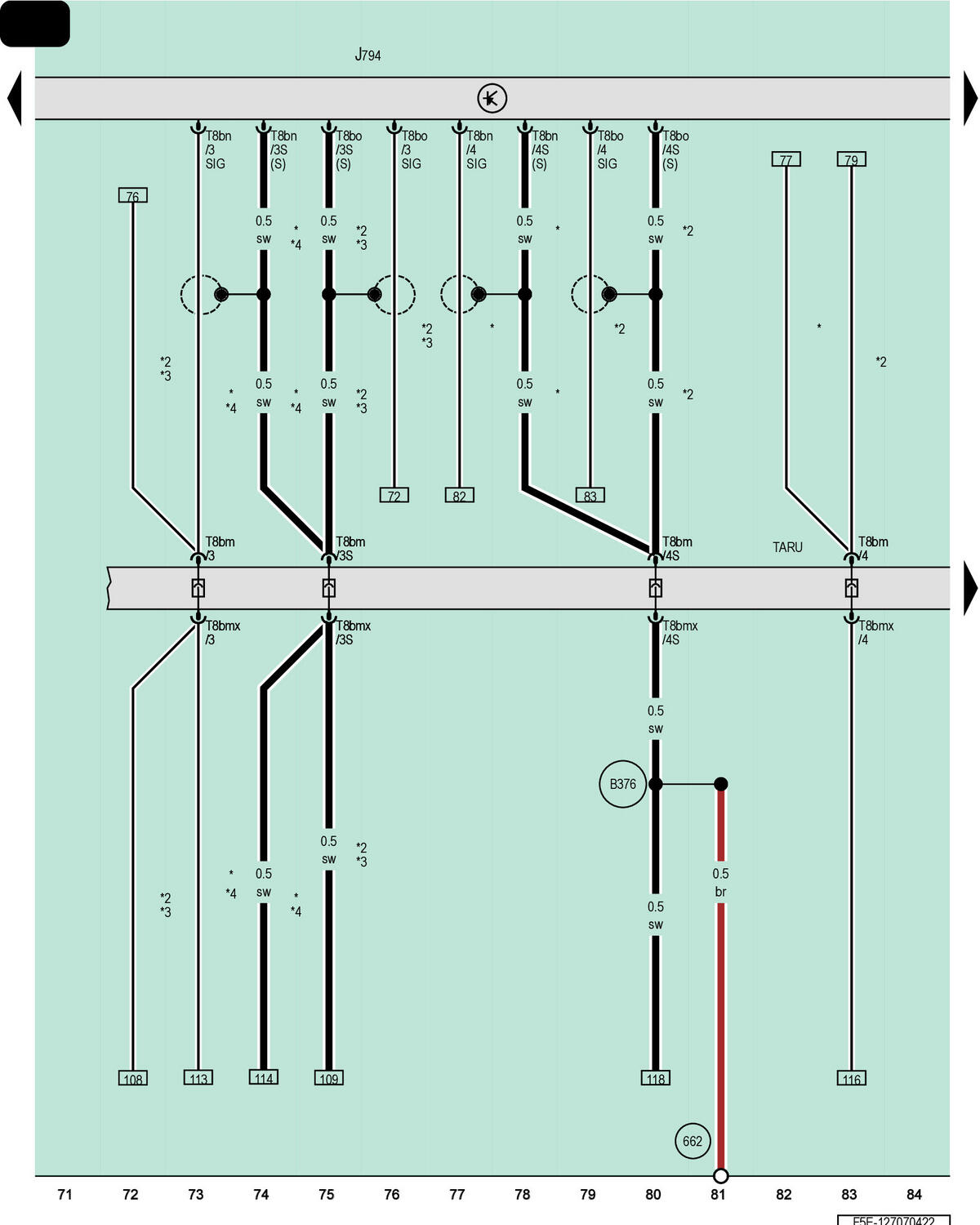

Information Electronics Control Module 1

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

T8bm

8-Pin Connector, White

T8bmx

8-Pin Connector, White

T8bn

8-Pin Connector, Light Blue

T8bo

8-Pin Connector, Black

TARU

Coupling Point on Right A-Pillar, Bottom

662

Ground Connection in Left Rear Side Panel

B376

Antenna Connection 6 (in Main Wiring Harness)

*

Not for USA

*2

For USA Only

*3

For Vehicles with Satellite Radio

*4

For Vehicles with Digital Radio
