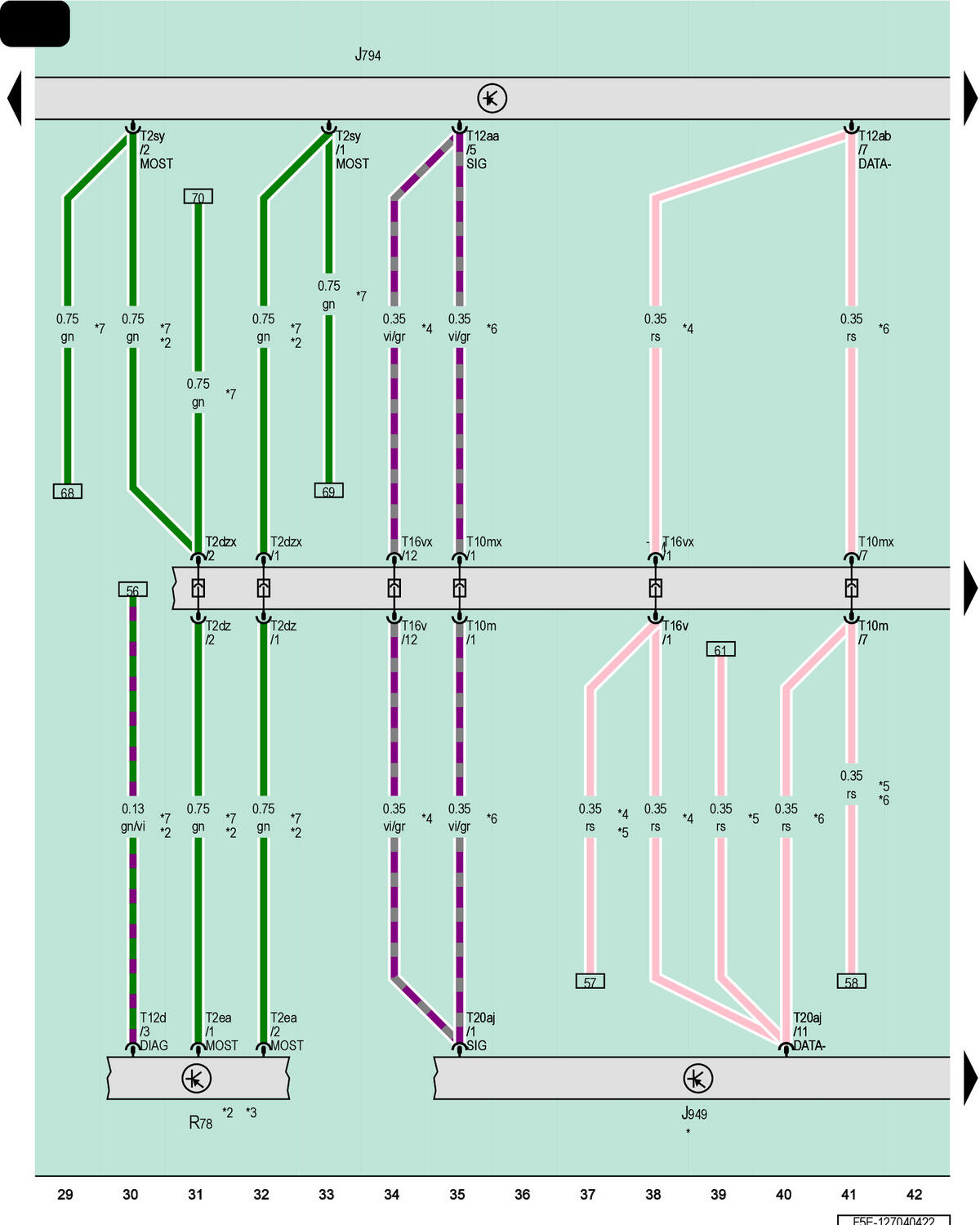

Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, TV Tuner
J794
Information Electronics Control Module 1
J949
Control Module for Emergency Call Module and Communication Unit
R78
TV Tuner
T2dz
2-Pin Connector, Black
T2dzx
2-Pin Connector, Black
T2ea
2-Pin Connector, Black
T2sy
2-Pin Connector, Black
T10m
10-Pin Connector, Black
T10mx
10-Pin Connector, Black
T12aa
12-Pin Connector, Blue
T12ab
12-Pin Connector, Green
T12d
12-Pin Connector, Black
T16v
16-Pin Connector, Brown
T16vx
16-Pin Connector, Brown
T20aj
20-Pin Connector, Naturally Cloudy
TIM
Coupling Point in Interior, Center
*
Refer to Applicable Communication Wiring Diagram
*2
For Vehicles with TV Tuner
*3
Refer to the Applicable TV Tuner Wiring Diagram
*4
From December 2019
*5
For Vehicles with Bang & Olufsen Sound System
*6
Through November 2019
*7
Refer to Applicable Wiring Diagram for Infotainment Most Bus
