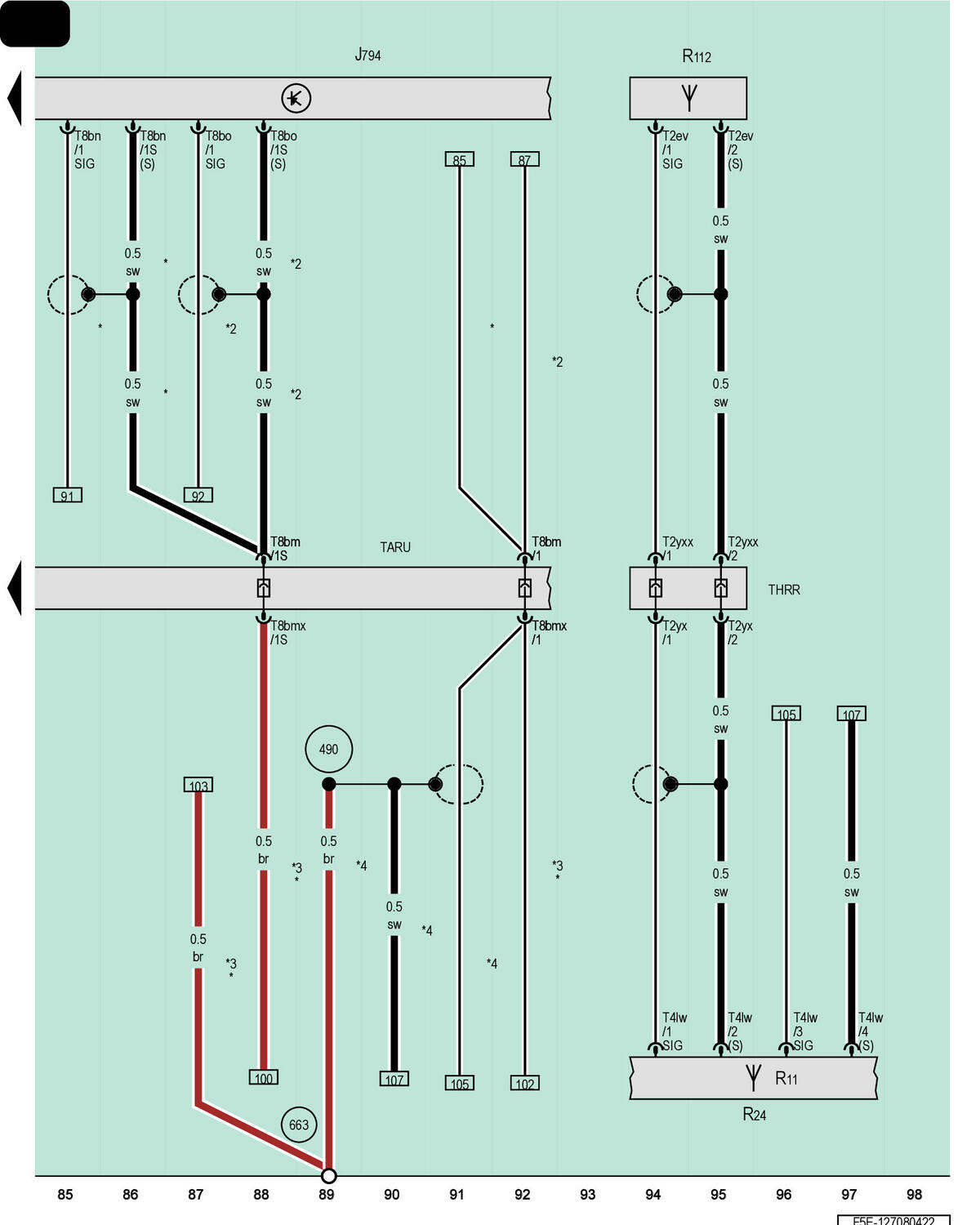

Information Electronics Control Module 1, Antenna Amplifier, Antenna Amplifier 3

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R11

Antenna

R24

Antenna Amplifier

R112

Antenna Amplifier 3

T2ev

2-Pin Connector, Gray

T2yx

2-Pin Connector, White

T2yxx

2-Pin Connector, White

T4lw

4-Pin Connector, Brown, Green

T8bm

8-Pin Connector, White

T8bmx

8-Pin Connector, White

T8bn

8-Pin Connector, Light Blue

T8bo

8-Pin Connector, Black

TARU

Coupling Point on Right A-Pillar, Bottom

THRR

Coupling Point in Luggage Compartment, Right

490

Shielding 2 Ground Connection (in Radio Navigation System Wiring Harness)

663

Ground Connection in Right Rear Side Panel

*

Not for USA

*2

For USA Only

*3

For Vehicles with Digital Radio

*4

Depending on Equipment
