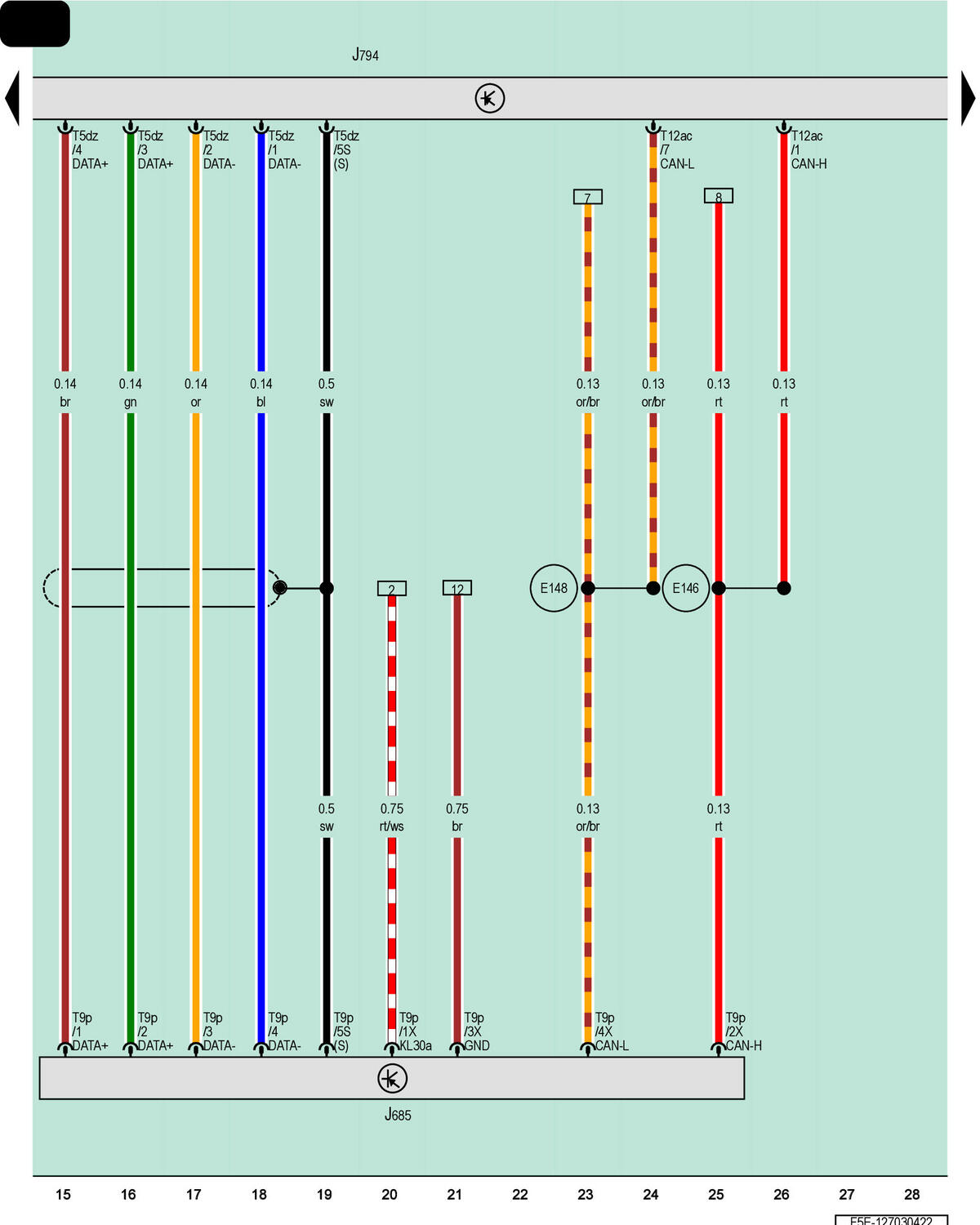

Front Information Display Control Head, Information Electronics Control Module 1

Courtesy of AUDI OF AMERICA, LLC

J685

Front Information Display Control Head

J794

Information Electronics Control Module 1

T5dz

5-Pin Connector, Black

T9p

9-Pin Connector, Black

T12ac

12-Pin Connector, Gray

E146

Connection 2 (CAN Bus Information Electronics Control Module 1, High)

E148

Connection 2 (CAN Bus Information Electronics Control Module 1, Low)
