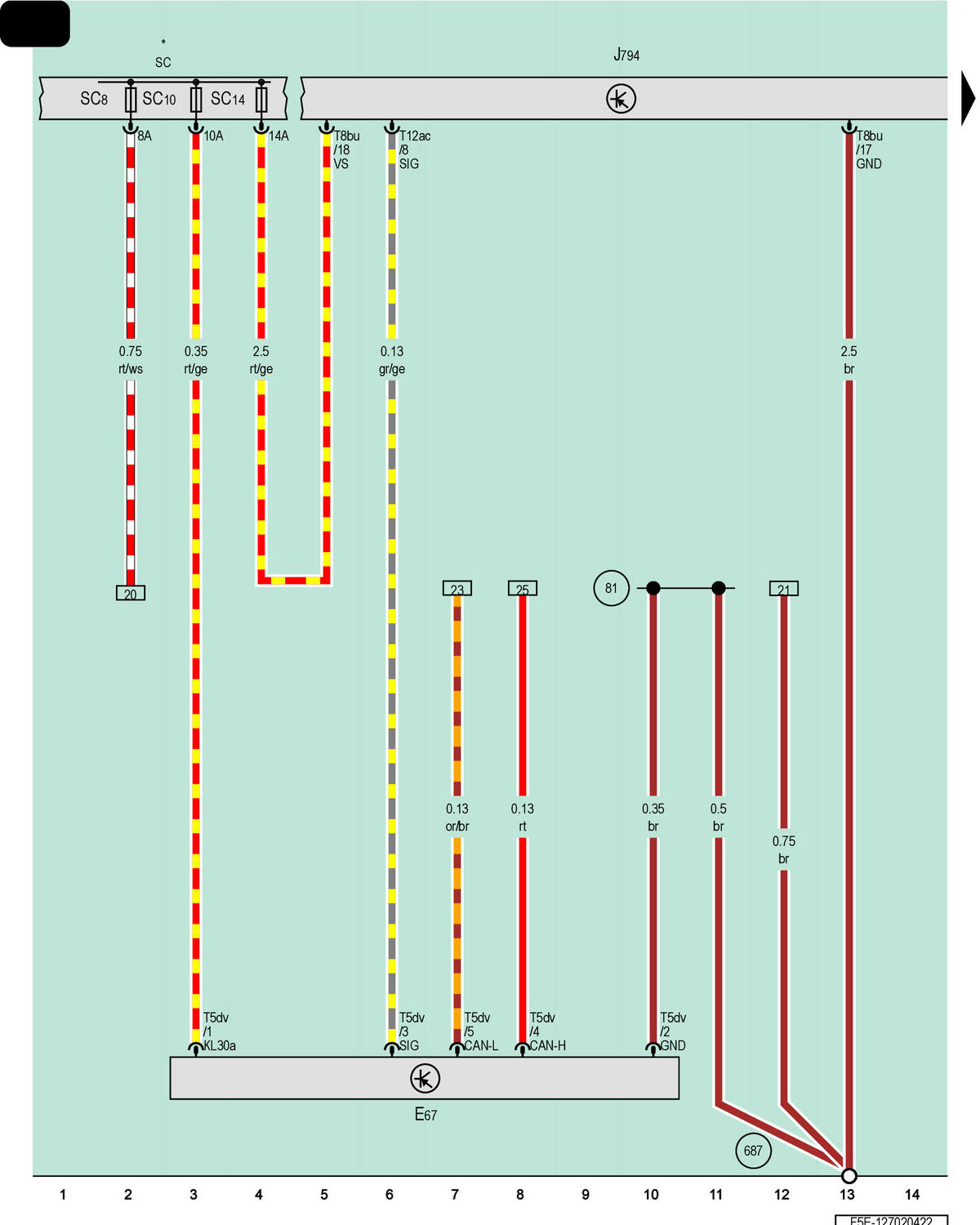

Driver Volume Control, Information Electronics Control Module 1

Courtesy of AUDI OF AMERICA, LLC

E67

Driver Volume Control

J794

Information Electronics Control Module 1

SC

Fuse Panel C

SC8

Fuse 8 (On Fuse Panel C)

SC10

Fuse 10 (On Fuse Panel C)

SC14

Fuse 14 (On Fuse Panel C)

T5dv

5-Pin Connector, Black

T8bu

8-Pin Connector, Black

T12ac

12-Pin Connector, Gray

81

Ground Connection 1 (in Instrument Panel Wiring Harness)

687

Ground Connection 1 on Center Tunnel

*

Refer to Applicable Wiring Diagram for Fuse Positions
