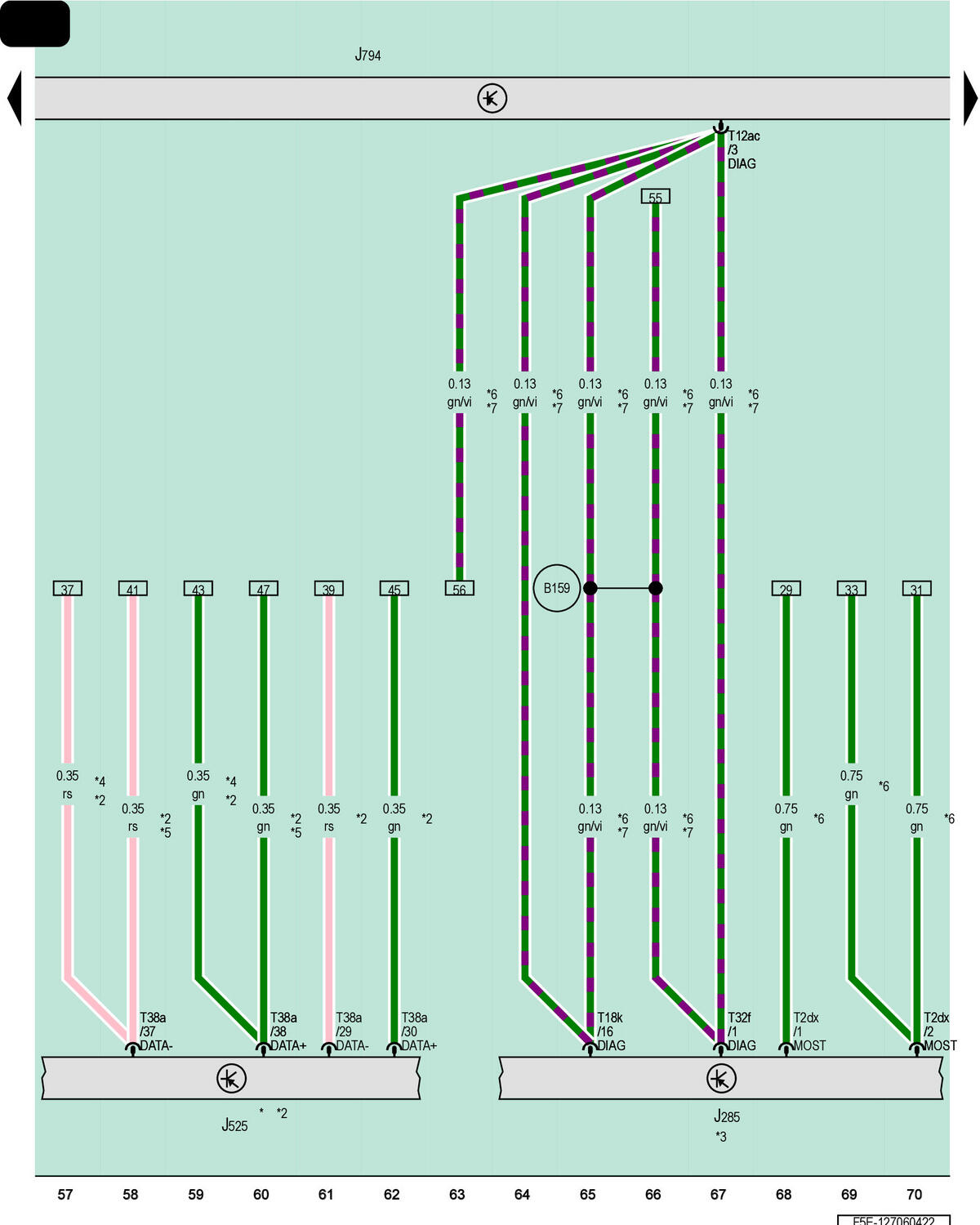

Digital Sound System Control Module, Information Electronics Control Module 1
J285
Instrument Cluster Control Module
J525
Digital Sound System Control Module
J794
Information Electronics Control Module 1
T2dx
2-Pin Connector, Black
T12ac
12-Pin Connector, Gray
T18k
18-Pin Connector, Black
T32f
32-Pin Connector, Gray
T38a
38-Pin Connector, Black
B159
Diagnostic Connection (in Interior Wiring Harness)
*
Refer to Applicable Sound System Wiring Diagram
*2
For Vehicles with Bang & Olufsen Sound System
*3
Refer to Applicable Wiring Diagram for Instrument Cluster
*4
From December 2019
*5
Through November 2019
*6
Refer to Applicable Wiring Diagram for Infotainment Most Bus
*7
Depending on Equipment
