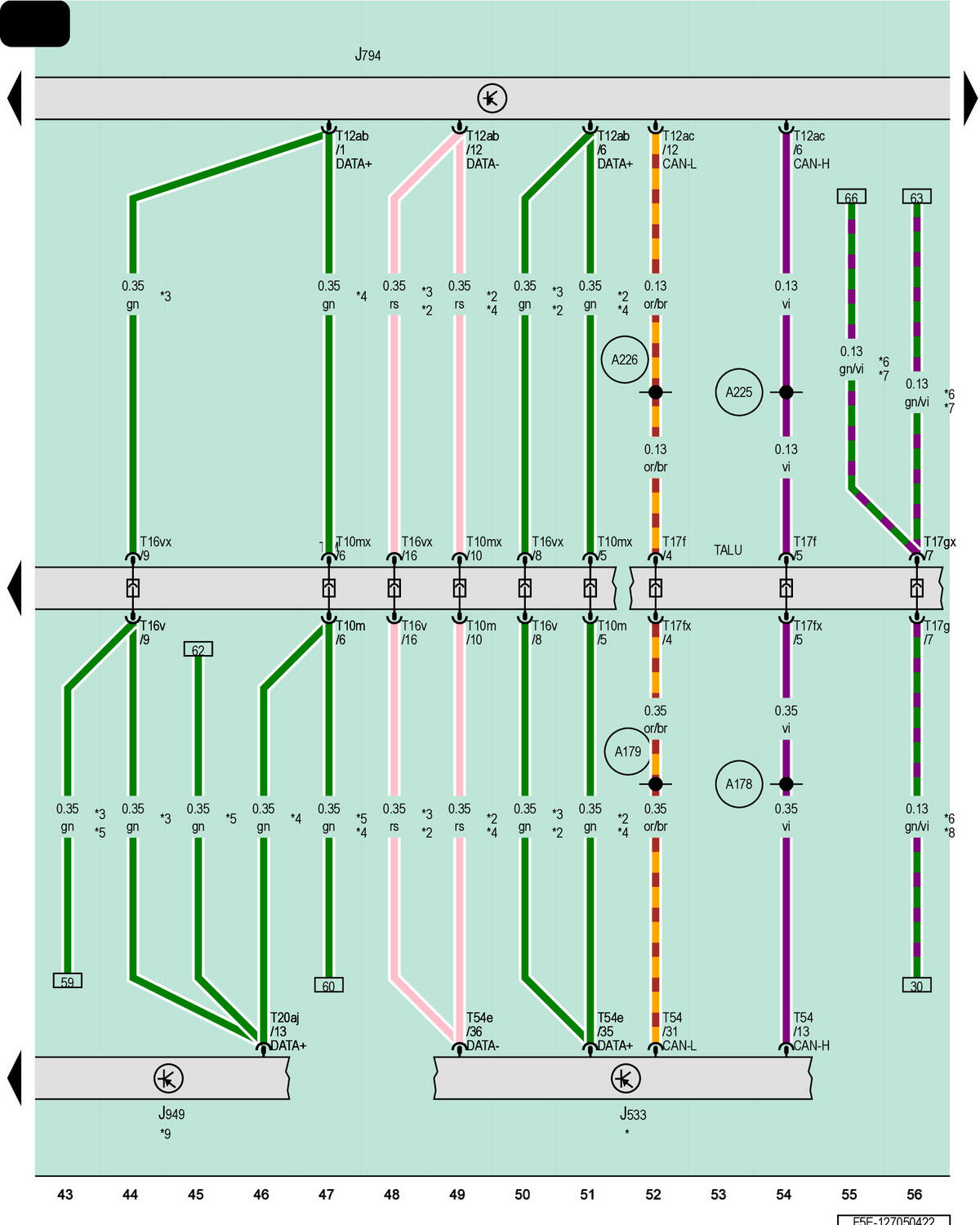

Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
J949
Control Module for Emergency Call Module and Communication Unit
T10m
10-Pin Connector, Black
T10mx
10-Pin Connector, Black
T12ab
12-Pin Connector, Green
T12ac
12-Pin Connector, Gray
T16v
16-Pin Connector, Brown
T16vx
16-Pin Connector, Brown
T17f
17-Pin Connector, Red
T17fx
17-Pin Connector, Red
T17g
17-Pin Connector, Blue
T17gx
17-Pin Connector, Blue
T20aj
20-Pin Connector, Naturally Cloudy
T54
54-Pin Connector, Black
T54e
54-Pin Connector, Gray
TALU
Coupling Point on Left A-Pillar, Bottom
TIM
Coupling Point in Interior, Center
A178
Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)
A179
Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)
A225
Infotainment CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)
A226
Infotainment CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)
*
Refer to Applicable Wiring Diagram for Data Bus on Board Diagnostic Interface
*2
Ethernet Connection
*3
From December 2019
*4
Through November 2019
*5
For Vehicles with Bang & Olufsen Sound System
*6
Refer to Applicable Wiring Diagram for Infotainment Most Bus
*7
Depending on Equipment
*8
For Vehicles with TV Tuner
*9
Refer to Applicable Communication Wiring Diagram
