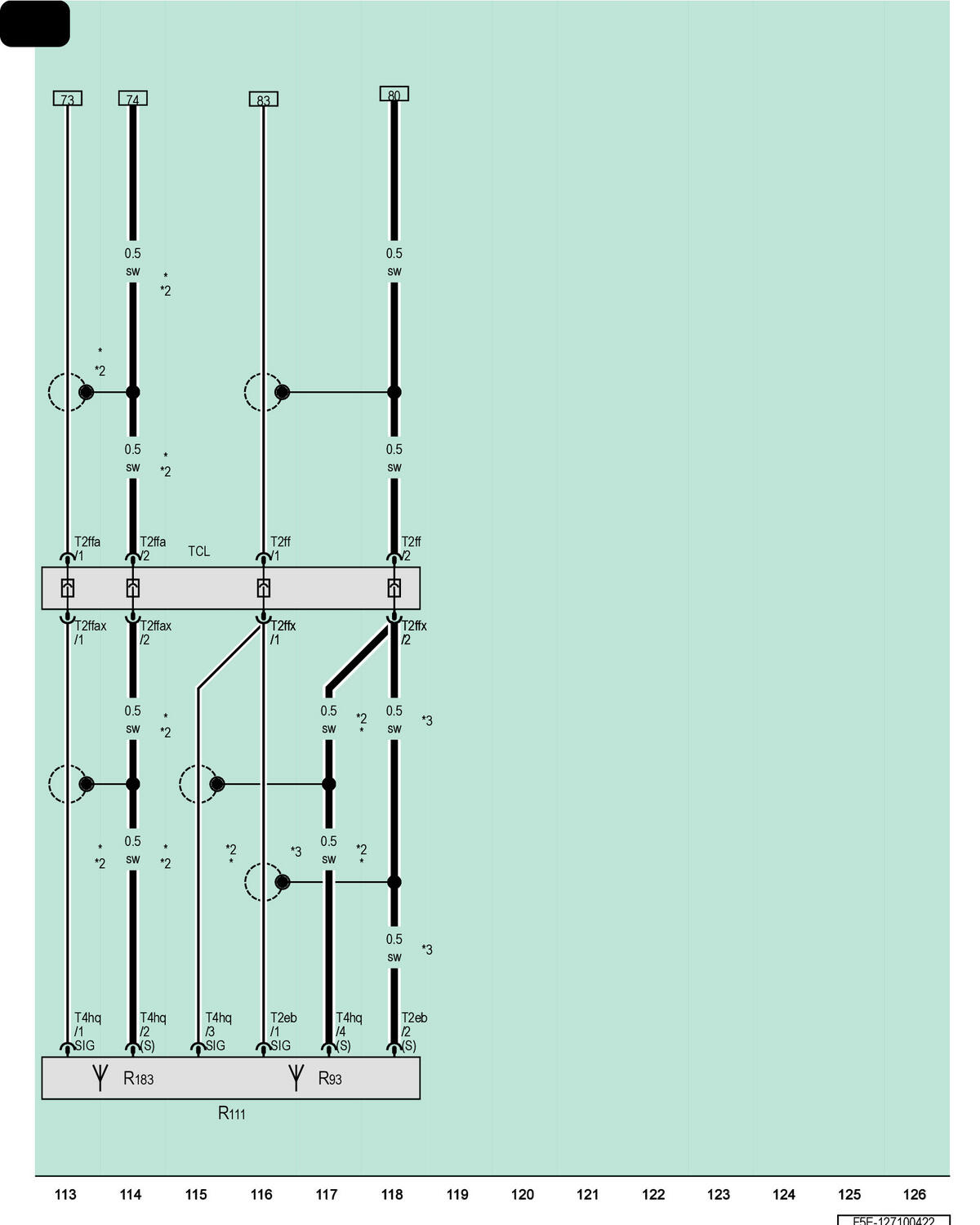

Antenna Amplifier 2

Courtesy of AUDI OF AMERICA, LLC

R93

Radio Antenna 2

R111

Antenna Amplifier 2

R183

Digital Radio Antenna

T2eb

2-Pin Connector, Light Brown

T2ff

2-Pin Connector, Naturally Cloudy

T2ffa

2-Pin Connector, Black

T2ffax

2-Pin Connector, Black

T2ffx

2-Pin Connector, Naturally Cloudy

T4hq

4-Pin Connector, Light Brown

TCL

Coupling Point on Left C-Pillar, In the Left Rear Side Panel

*

Not for USA

*2

For Vehicles with Digital Radio

*3

Depending on Equipment
