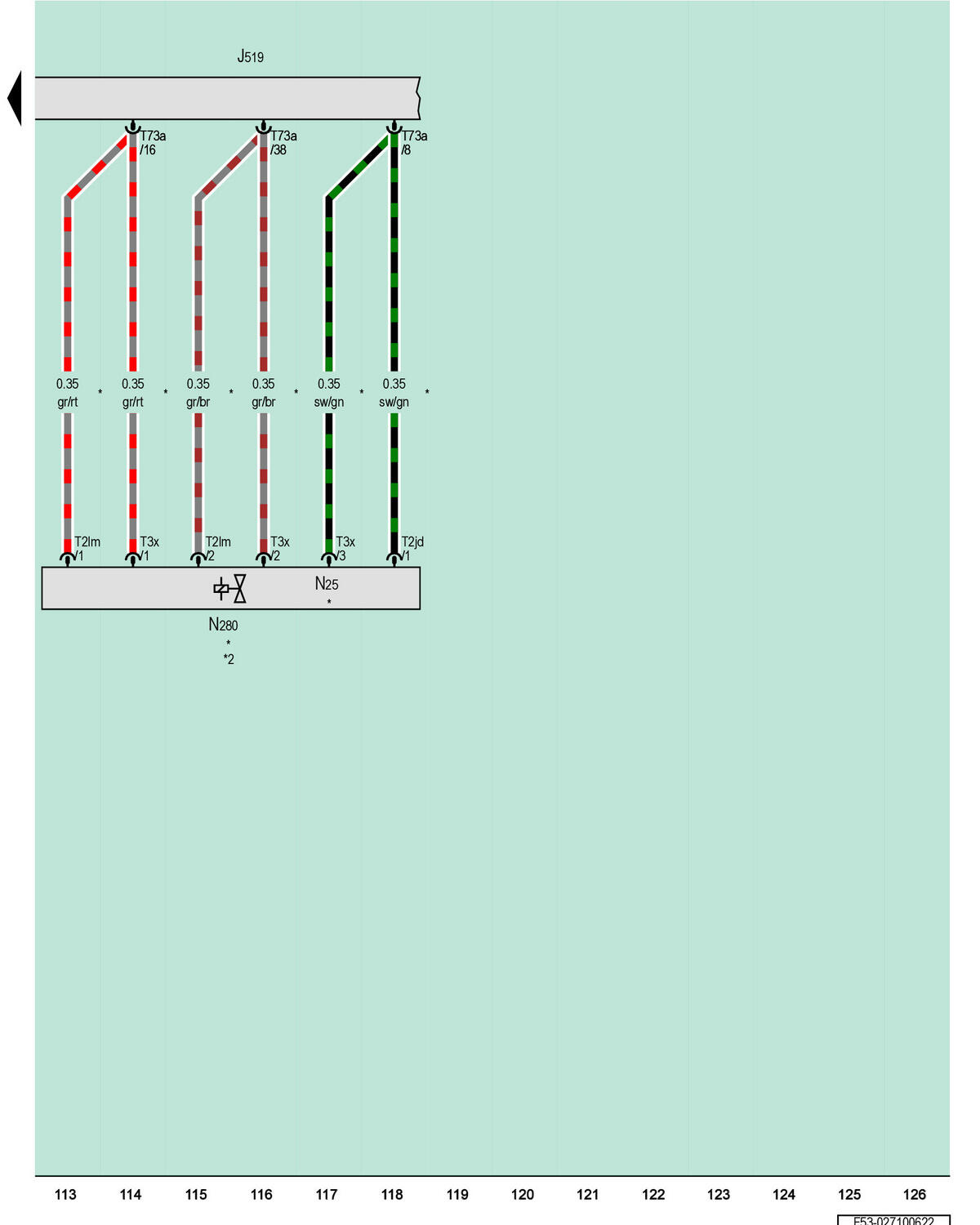

Vehicle Electrical System Control Module, A/C Clutch, A/C Compressor Regulator Valve

GWWF53-027100622Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

N25

A/C Clutch

N280

A/C Compressor Regulator Valve

T2jd

2-Pin Connector, Brown

T2lm

2-Pin Connector, Black

T3x

3-Pin Connector, Black

T73a

73-Pin Connector, Black

*

Depending on Equipment

*2

Refer to Applicable Engine Wiring Diagram
