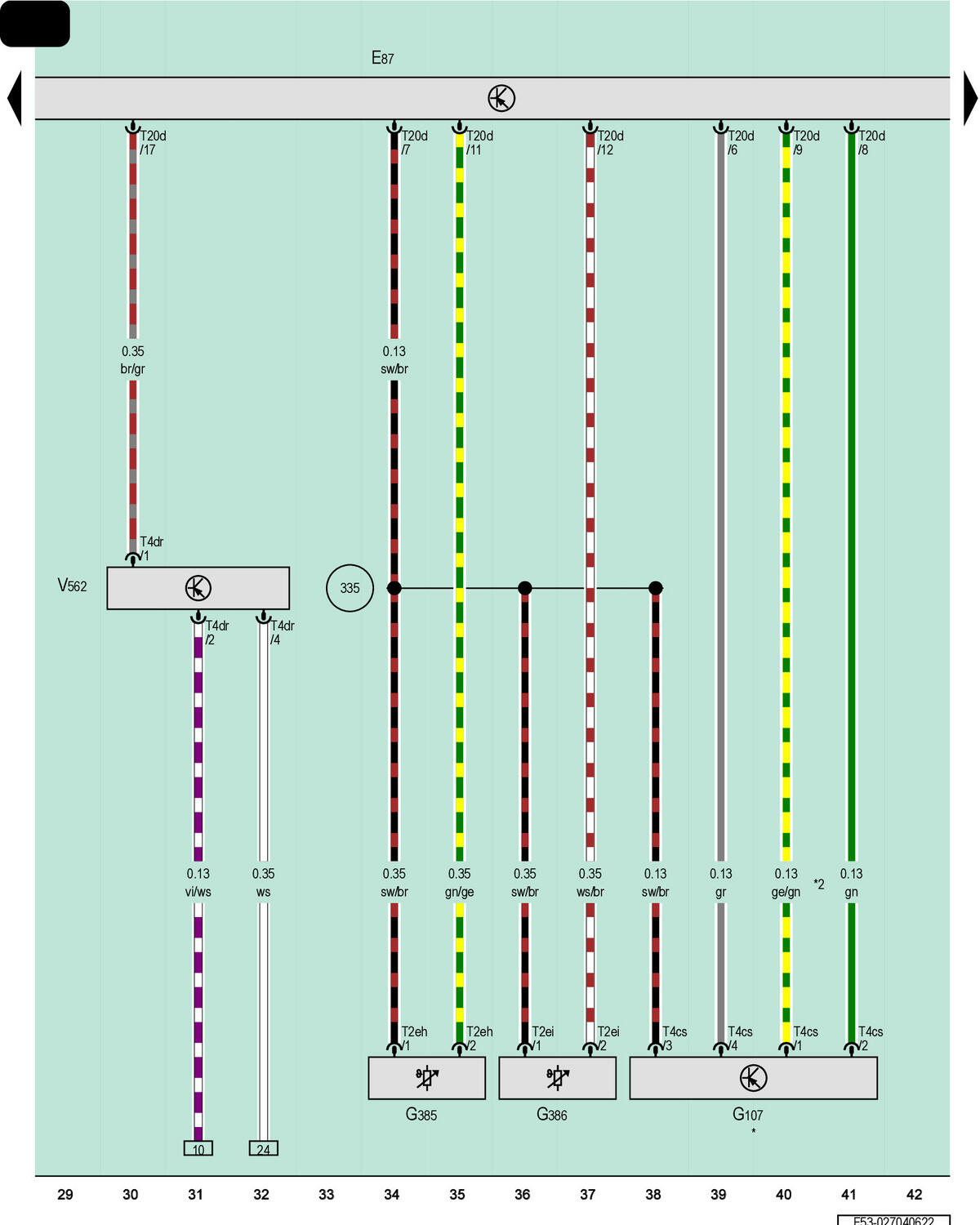

Front A/C Display Control Head, Sunlight Photo Sensor, Left Front Upper Body Vent Temperature Sensor, Right Front Upper Body Vent Temperature Sensor

Courtesy of AUDI OF AMERICA, LLC

E87

Front A/C Display Control Head

G107

Sunlight Photo Sensor

G385

Left Front Upper Body Vent Temperature Sensor

G386

Right Front Upper Body Vent Temperature Sensor

T2eh

2-Pin Connector, Black

T2ei

2-Pin Connector, Black

T4cs

4-Pin Connector, Black

T4dr

4-Pin Connector, Black

T20d

20-Pin Connector, Black

V562

Instrument Panel Vent Motor

335

Ground Connection 5 (in Instrument Panel Wiring Harness)

*

Through May 2016

*2

Different Wire Color Possible
