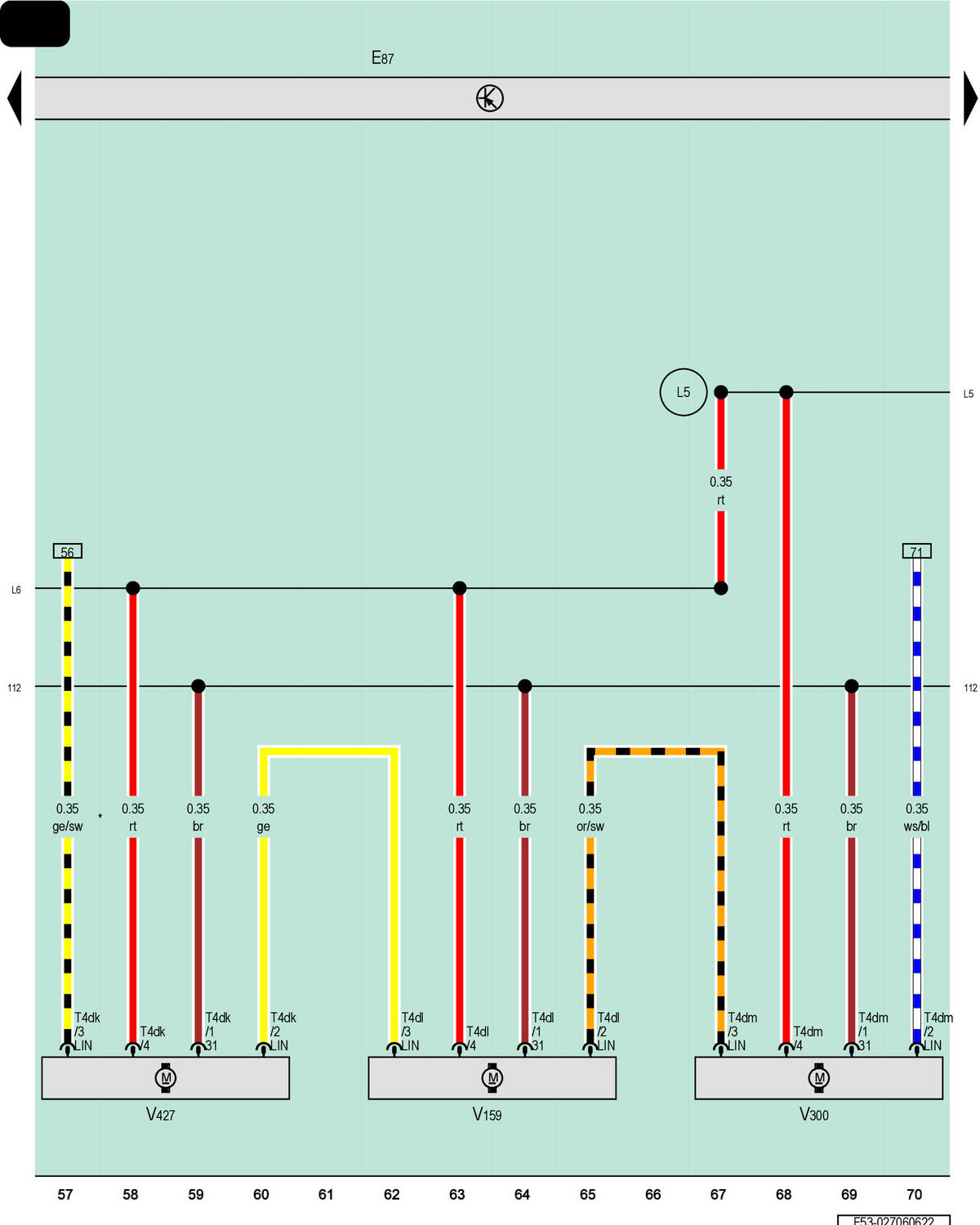

Front A/C Display Control Head, Right Temperature Control Door Motor, Right Side Vent Adjustment Motor, Rear Air Distribution Door Motor

Courtesy of AUDI OF AMERICA, LLC

E87

Front A/C Display Control Head

T4dk

4-Pin Connector, Black

T4dl

4-Pin Connector, Black

T4dm

4-Pin Connector, Black

V159

Right Temperature Control Door Motor

V300

Right Side Vent Adjustment Motor

V427

Rear Air Distribution Door Motor

112

Ground Connection 2 (in A/C Wiring Harness)

L5

Connection 1 (in A/C Unit Wiring Harness)

L6

Connection 2 (in A/C Unit Wiring Harness)

*

The Color of the Wires Depends on Vehicle Equipment
