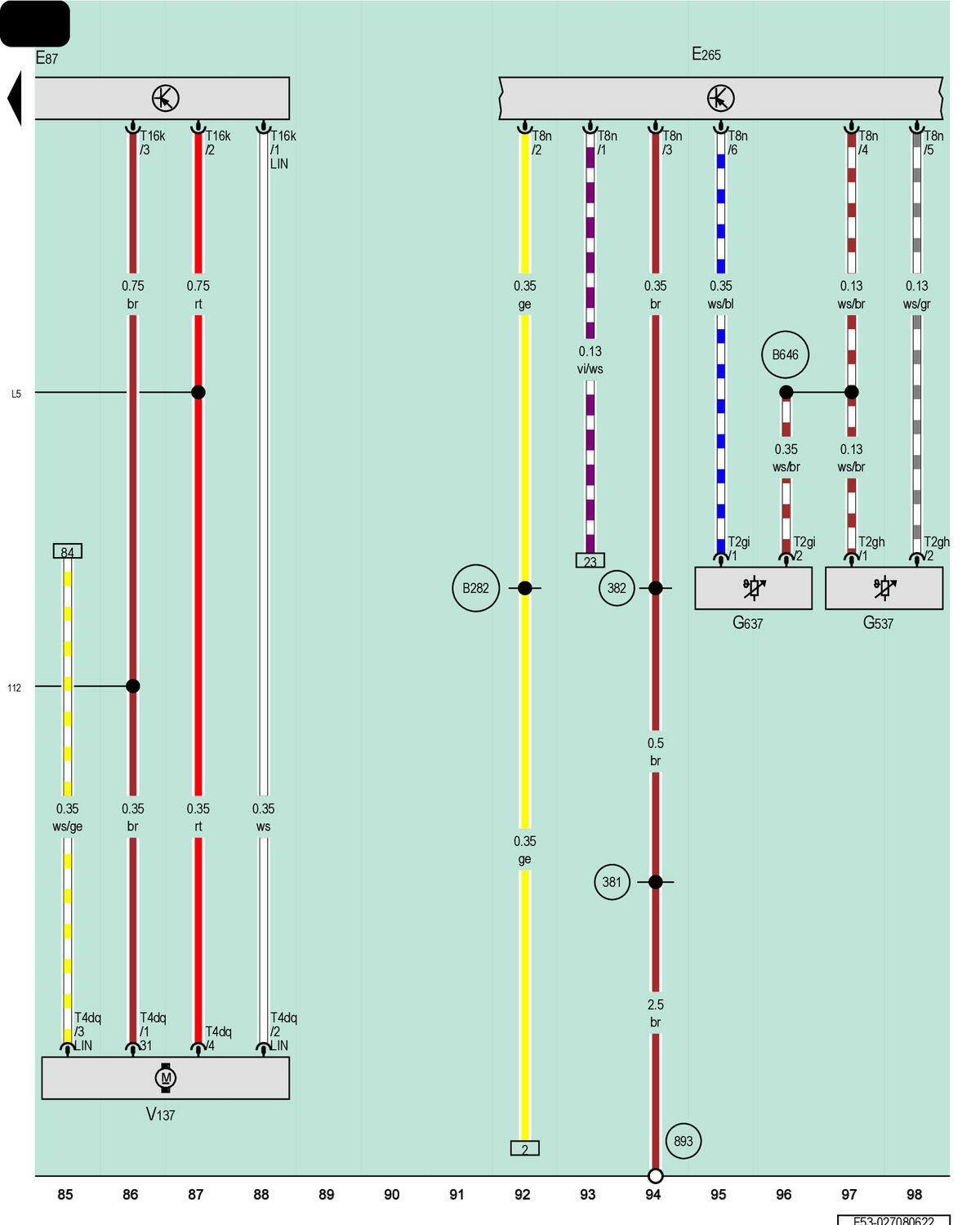

Front A/C Display Control Head, Rear A/C Display Control Head, Rear Upper Body Vent Temperature Sensor, Rear Temperature Control Door Motor
E87
Front A/C Display Control Head
E265
Rear A/C Display Control Head
G537
Rear Upper Body Vent Temperature Sensor
G637
Left Rear Footwell Vent Temperature Sensor
T2gh
2-Pin Connector, Black
T2gi
2-Pin Connector, Black
T4dq
4-Pin Connector, Black
T8n
8-Pin Connector, Black
T16k
16-Pin Connector, Black
V137
Rear Temperature Control Door Motor
112
Ground Connection 2 (in A/C Wiring Harness)
381
Ground Connection 16 (in Main Wiring Harness)
382
Ground Connection 17 (in Main Wiring Harness)
893
Ground Connection 2 on Left B-Pillar
B282
Positive Connection 6 (15a) (in Main Wiring Harness)
B646
Heated Seat Connection 3 (in Main Wiring Harness)
L5
Connection 1 (in A/C Unit Wiring Harness)
