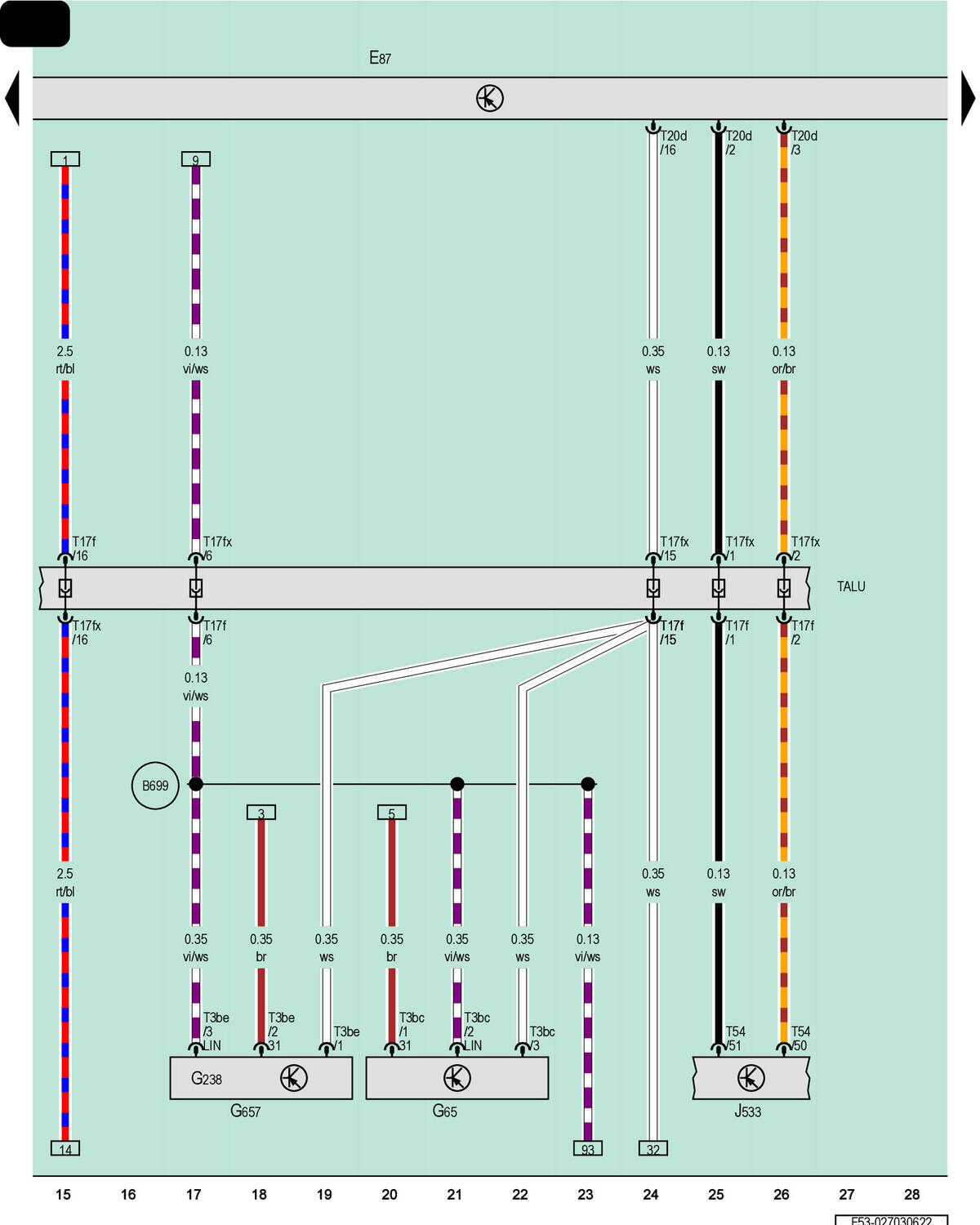

Front A/C Display Control Head, High Pressure Sensor, Air Quality Sensor, Humidity Sensor In Fresh Air Intake Duct, Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

E87

Front A/C Display Control Head

G65

High Pressure Sensor

G238

Air Quality Sensor

G657

Humidity Sensor in Fresh Air Intake Duct

J533

Data Bus on Board Diagnostic Interface

T3bc

3-Pin Connector, Black

T3be

3-Pin Connector, Brown

T17f

17-Pin Connector, Red

T17fx

17-Pin Connector, Red

T20d

20-Pin Connector, Black

T54

54-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

B699

LIN Bus Connection 4 (in Main Wiring Harness)
