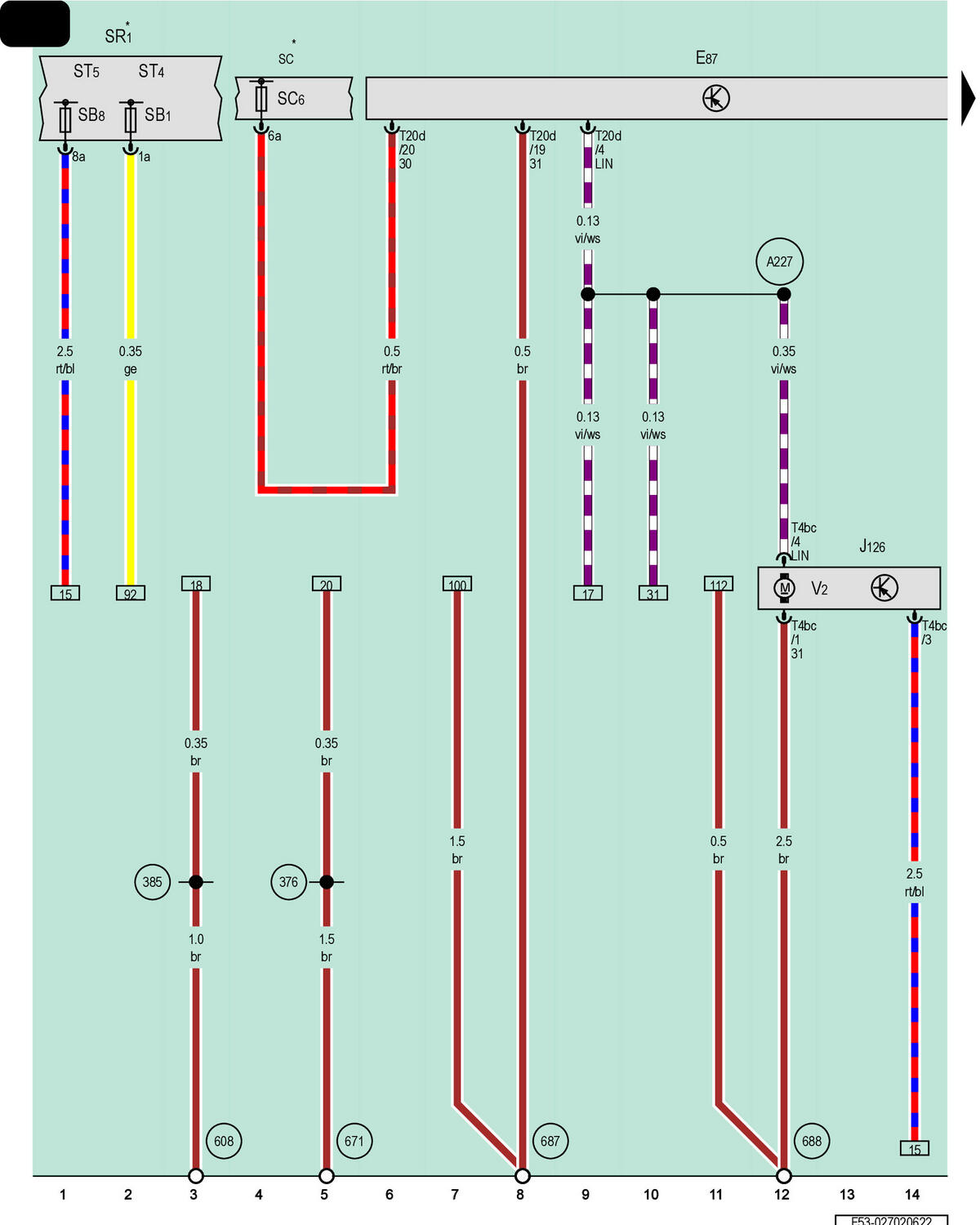

Front A/C Display Control Head, Fresh Air Blower Control Module, Fresh Air Blower
E87
Front A/C Display Control Head
J126
Fresh Air Blower Control Module
SB1
Fuse 1 (On Fuse Panel B)
SC
Fuse Panel C
SR1
Relay and Fuse Panel 1
ST4
Fuse Panel 4, Black
ST5
Fuse Panel 5, Red
SC6
Fuse 6 (On Fuse Panel C)
SB8
Fuse 8 (On Fuse Panel B)
T4bc
4-Pin Connector, Black
T20d
20-Pin Connector, Black
V2
Fresh Air Blower
376
Ground Connection 11 (in Main Wiring Harness)
385
Ground Connection 20 (in Main Wiring Harness)
608
Ground Connection in Plenum Chamber, Center
671
Ground Connection 1 on Left Front Longitudinal Member
687
Ground Connection 1 on Center Tunnel
688
Ground Connection 2 on Center Tunnel
A227
LIN Bus Connection 2 (in Instrument Panel Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
