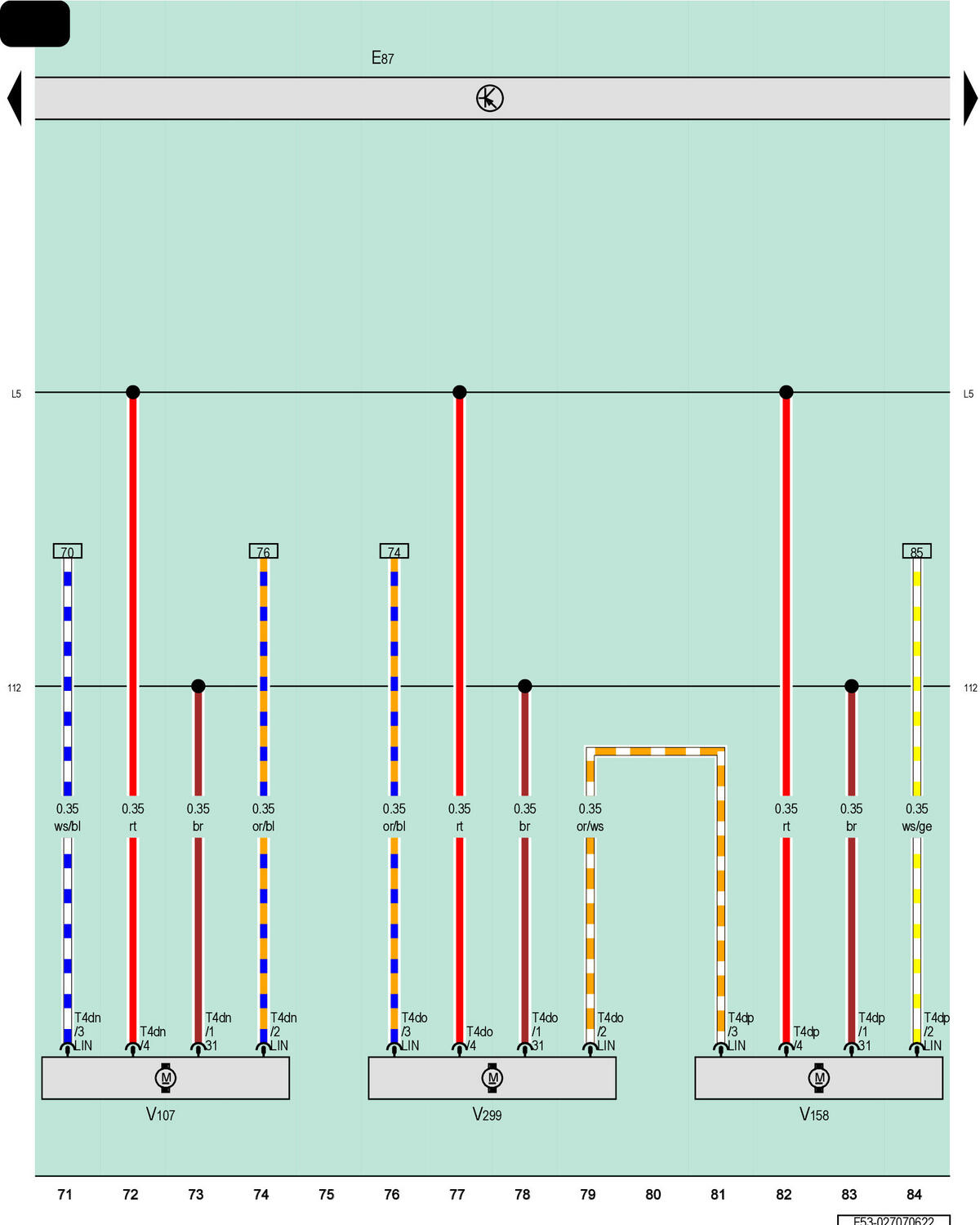

Front A/C Display Control Head, Defroster Door Motor, Left Temperature Control Door Motor, Left Side Vent Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

E87

Front A/C Display Control Head

T4dn

4-Pin Connector, Black

T4do

4-Pin Connector, Black

T4dp

4-Pin Connector, Black

V107

Defroster Door Motor

V158

Left Temperature Control Door Motor

V299

Left Side Vent Adjustment Motor

112

Ground Connection 2 (in A/C Wiring Harness)

L5

Connection 1 (in A/C Unit Wiring Harness)
