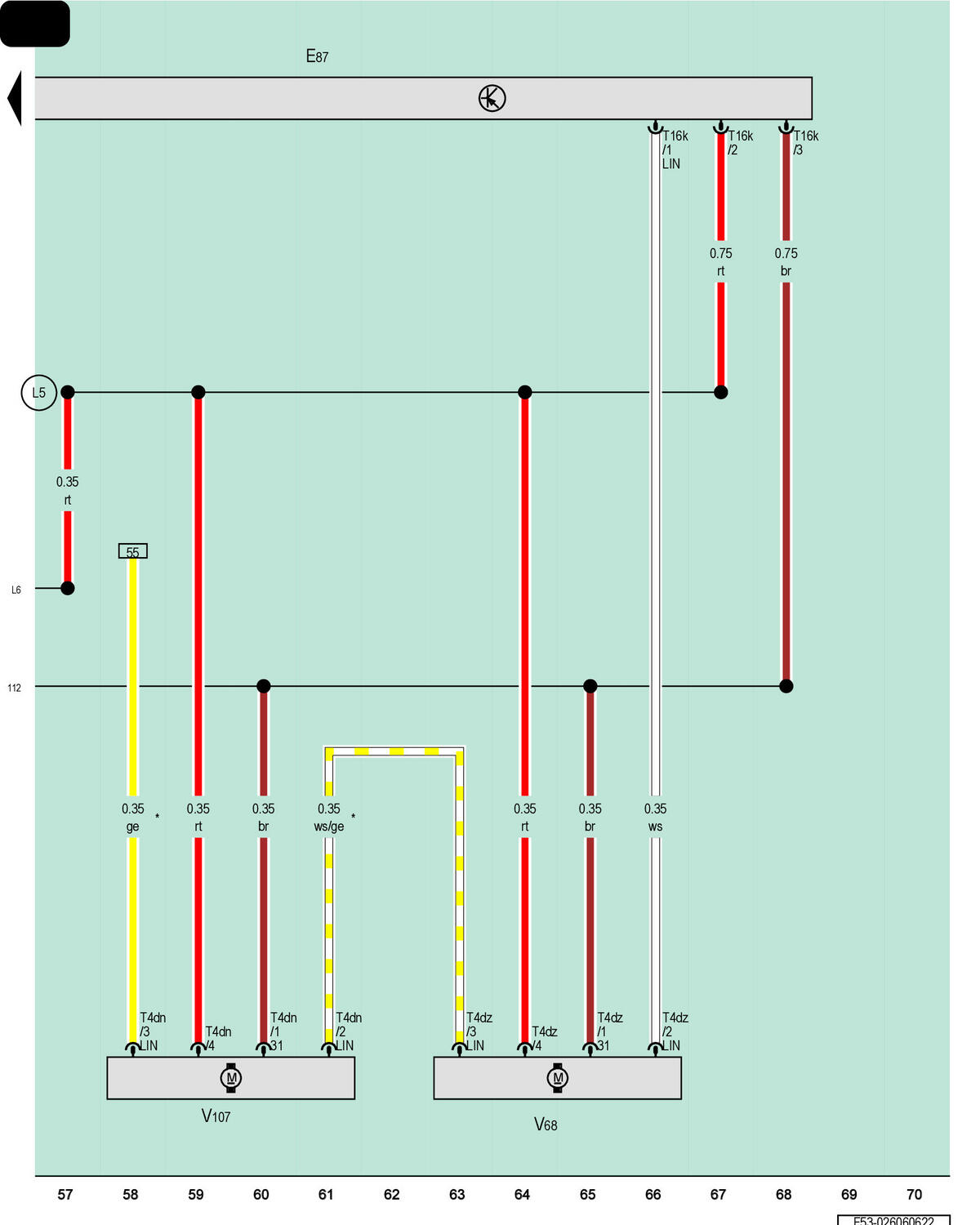

Front A/C Display Control Head, Temperature Control Door Motor, Defroster Door Motor

Courtesy of AUDI OF AMERICA, LLC

E87

Front A/C Display Control Head

T4dn

4-Pin Connector, Black

T4dz

4-Pin Connector, Black

T16k

16-Pin Connector, Black

V68

Temperature Control Door Motor

V107

Defroster Door Motor

112

Ground Connection 2 (in A/C Wiring Harness)

L5

Connection 1 (in A/C Unit Wiring Harness)

L6

Connection 2 (in A/C Unit Wiring Harness)

*

The Color of the Wires Depends on Vehicle Equipment
