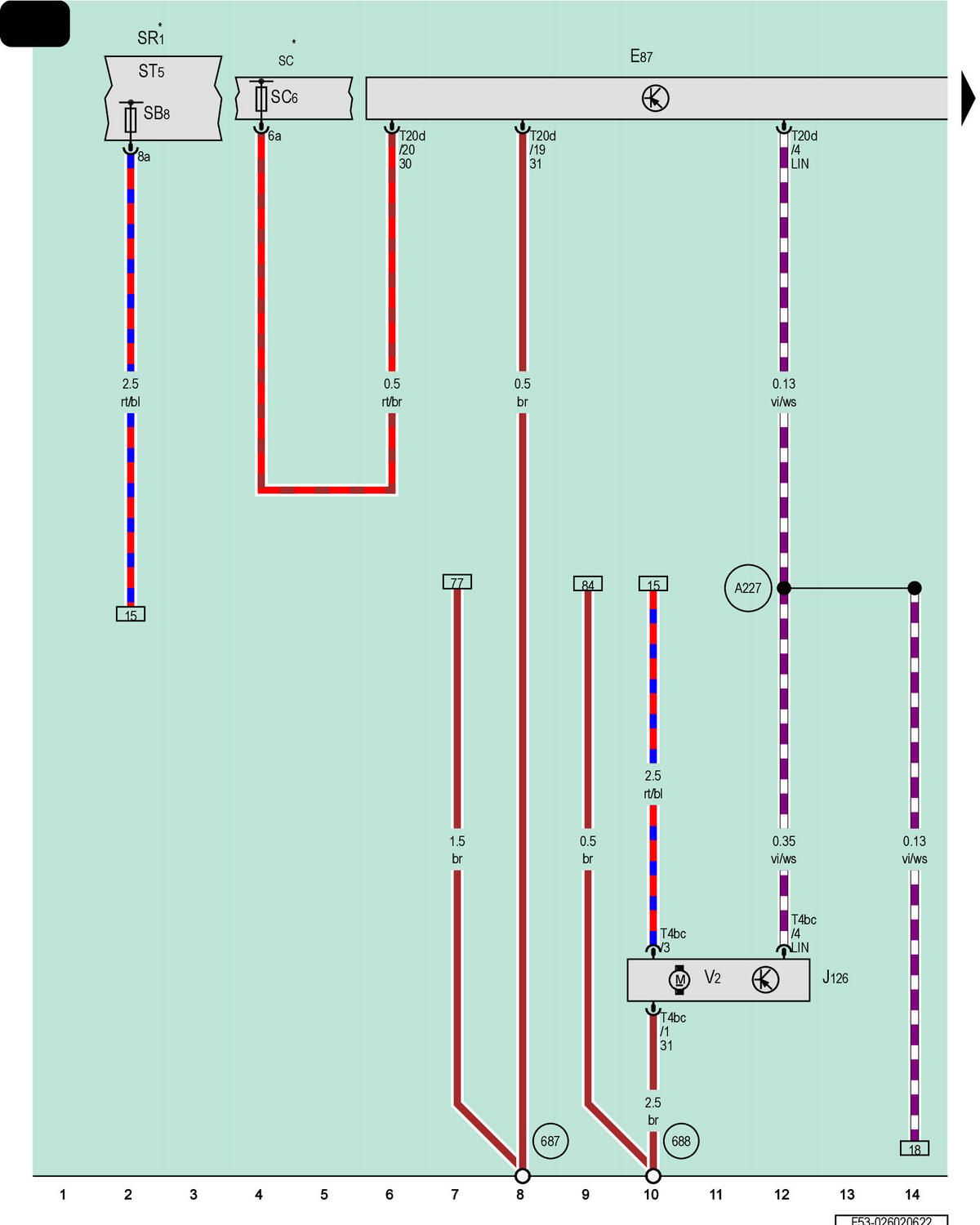

Front A/C Display Control Head, Fresh Air Blower Control Module, Fresh Air Blower

Courtesy of AUDI OF AMERICA, LLC

E87

Front A/C Display Control Head

J126

Fresh Air Blower Control Module

SR1

Relay and Fuse Panel 1

SB8

Fuse 8 (On Fuse Panel B)

SC

Fuse Panel C

ST5

Fuse Panel 5, Red

SC6

Fuse 6 (On Fuse Panel C)

T4bc

4-Pin Connector, Black

T20d

20-Pin Connector, Black

V2

Fresh Air Blower

687

Ground Connection 1 on Center Tunnel

688

Ground Connection 2 on Center Tunnel

A227

LIN Bus Connection 2 (in Instrument Panel Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
