Sill Panel Trim, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Equipment version with illuminated sill panel trim:
-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Remove the B-pillar lower trim panel. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

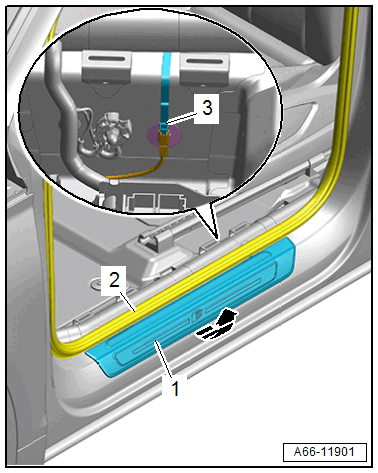

-- Lift the carpet slightly and disconnect the connector -3-.
-- Free up the wire by slightly pulling the seal -2- away from the body flange.
Continuation:
-- Vehicles without cut-outs for pin in the side sill: make the position of the sill panel for installation.
-- Carefully warm up the sill panel trim -1- using the Hot Air Blower:V.A.G 1416 .
-- Carefully pry the sill panel trim from the side sill in the direction of -arrow- using the Trim Removal Wedge:3409 . Do not damage the paint coat while doing so.
