Overview - Bumper Cover, From Product Improvement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

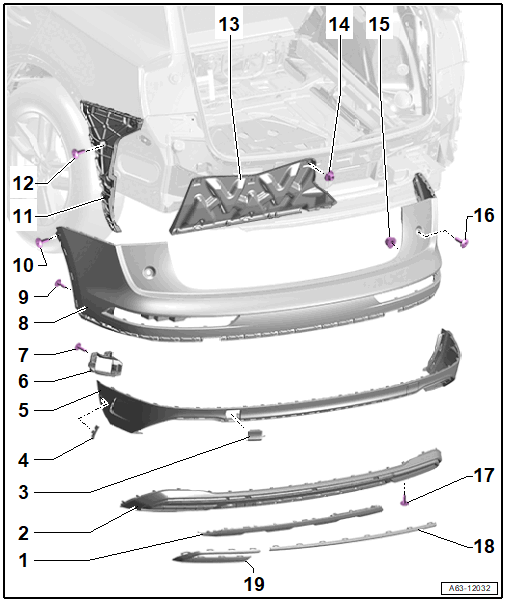

Fig 1: Exploded View Of Bumper Cover (From Product Improvement)

Courtesy of AUDI

Impact Guard
- Removing and Installing. Refer to IMPACT GUARD, REMOVING AND INSTALLING .
Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
Cap
- Left: for the tail lamp bolt
- Right: for the tail lamp bolt and towing eye
Cover Strip
- Removing and Installing. Refer to COVER STRIP, REMOVING AND INSTALLING .
Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
- Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Mount
- For lane change assistance control module
- Overview. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
Bolt
- Quantity: 3
- Tightening specification. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
Bumper Cover Upper Section
- Removing and Installing. Refer to BUMPER COVER UPPER SECTION, REMOVING AND INSTALLING .
- Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Bolt
- Quantity: 3
- 2 Nm
Bolt
- 2 Nm
Mount
- Side
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, SIDE .
Bolt
- Quantity: 4
- Tightening sequence. Refer to Figure.
Mount
- Lower
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
Nut
- Quantity: 3
- 4 Nm
Nut
- Quantity: 4
- 4 Nm
Bolt
- Quantity: 2
- 1.5 Nm
Bolt
- Quantity: 4
- 2 Nm
Trim Molding
- Center
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
Trim Molding
- Side
- Removing and Installing. Refer to BUMPER COVER TRIM MOLDING, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
