Bumper Cover Lower Section, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

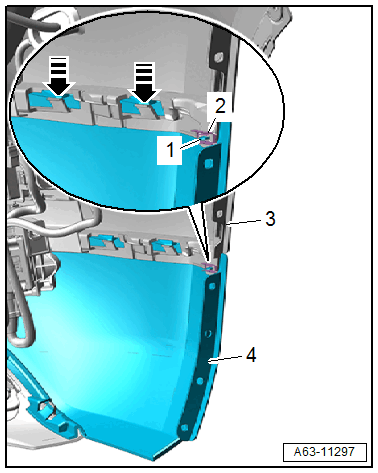

-- Equipped on some models: pry up the clamp -2- at the same time do not destroy the tab -1-.
-- Release the retainers in the direction of -arrows- and remove the bumper cover lower section -4- from the bumper cover -3-.
-- Place the bumper cover lower section on a soft surface.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

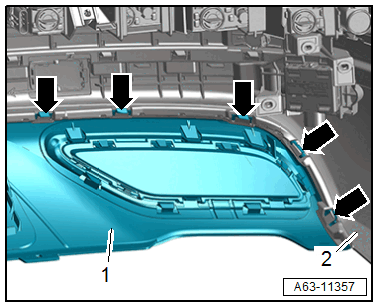

-- Release the retainers -arrows- and remove the lower section -1- from the bumper cover -2-.
