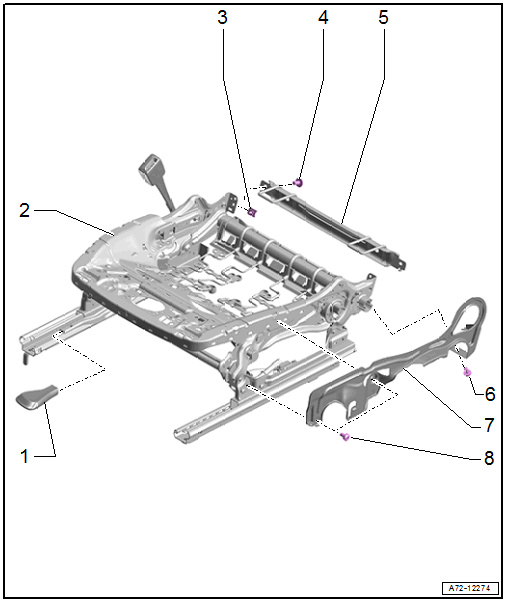

Overview - Seat Pan
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Handle
- For manual seat forward/back adjustment
- Replace after removing
- Refer to SEAT FORWARD/BACK ADJUSTMENT HANDLE, REMOVING AND INSTALLING
- Seat Pan
- Upper and lower frame cannot be separated
- To replace, install the electrical and electronic components and wires in the new seat pan
- Spring Nut
- Quantity: 2
- Attached in the seat pan
- Replace any damaged or deformed spring nuts
- Bolt
- Quantity: 2
- Tightening Specification. Refer to OVERVIEW - FRONT CHILD SEAT ANCHORS .
- Child Seat Anchor
- Front passenger seat only
- Bolted to the seat pan
- Refer to CHILD SEAT ANCHORS, CHECKING AFTER COLLISION
- Replace damaged or deformed child seat anchor
- Refer to OVERVIEW - FRONT CHILD SEAT ANCHORS
- Bolt
- 7.5 Nm
- Bracket
- For seat side trim on side sill side
- Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING
- Bolt
- Quantity: 2
- 7.5 Nm
